Wilwood Rear ProMatrix Pads for Listed Suburban 1500, Tahoe, Yukon/Yukon XL 1500, Escalade/Escalade EXT, Avalanche 1500 and Express/Savana 3500 Single-Rear-Wheel Applications (2002–2015)

The D974 ProMatrix rear plate appears on specified GM SUV brake packages and single-rear-wheel 3500 vans. At a nominal 0.66 inch thick, this set requires the correct rear caliper and cannot be chosen solely from an Express or Savana weight-class badge. Bill Wood established Wilwood Engineering in 1977, and the company is based in Camarillo, California. It designs and manufactures disc brake systems, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized use. The individual parts must be selected as compatible elements of the complete brake system.

Technical Details

• Manufacturer part number: 150-D0974K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D974
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .66 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 5.000 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

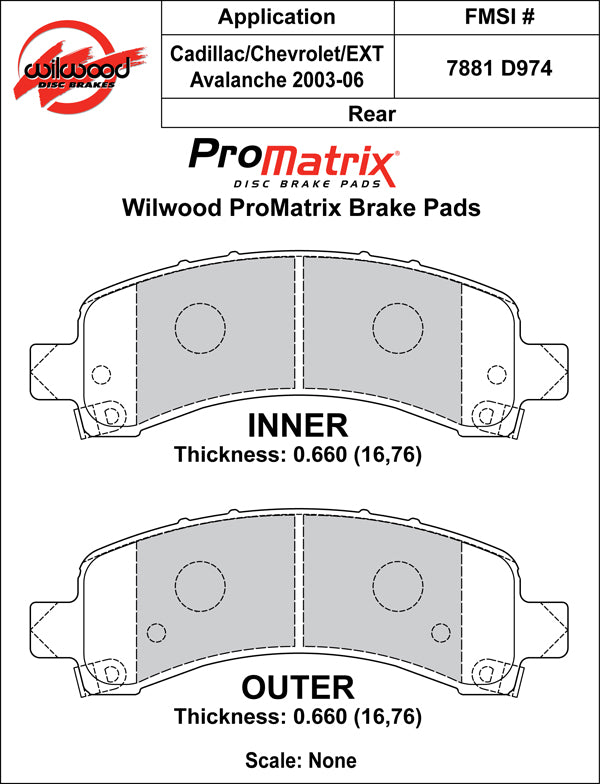

• Drawing thickness, inner / outer: .660 / .660 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Use the individual Suburban, Tahoe, Yukon, Yukon XL, Escalade, Escalade EXT and Avalanche rows for SUV equipment. Express 3500 and Savana 3500 van entries specify single rear wheels where applicable, separating this selection from dual-rear-wheel brake arrangements.

Application coverage, subject to the brake and equipment qualifications below: Chevrolet Suburban 1500 (2002–2006); Chevrolet Tahoe (2003–2006); GMC Yukon (2003–2006); GMC Yukon XL 1500 (2003–2006); Chevrolet Express 3500 (2003–2015); GMC Savana 3500 (2003–2014); Cadillac Escalade (2002–2006); Chevrolet Avalanche 1500 (2002–2006); Cadillac Escalade EXT (2002–2004).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.
