Wilwood Front ProMatrix D970 Pads for Focus SVT (2002–2004), Transit Connect (2010–2013) and Transit (2010)

Separate inner and outer D970 pads are supplied in this ProMatrix front set. Wilwood's drawing gives 0.680 inch for the inner pad and 0.660 inch for the outer, so the single nominal specification does not describe both pieces equally. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 150-D0970K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D970
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .68 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.200 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

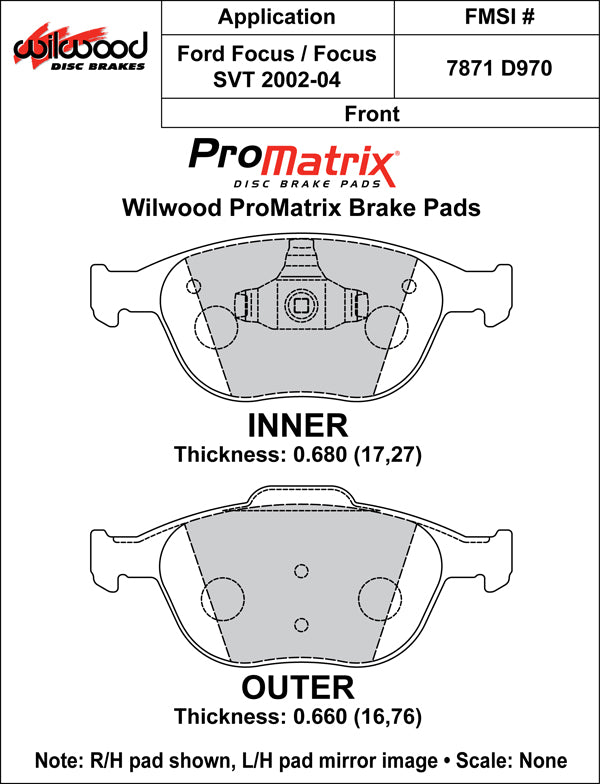

• Drawing thickness, inner / outer: .680 / .660 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Focus coverage is SVT only, with a through-April 4, 2004 qualification on the relevant entry. Transit Connect and Transit are distinct model entries with different year ranges; compare the actual caliper on either commercial vehicle.

Application coverage, subject to the brake and equipment qualifications below: Ford Focus (2002–2004); Ford Transit Connect (2010–2013); Ford Transit (2010).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

With over 20 years of experience, PMB Performance can help compare the pad profile with your brake configuration. Include the vehicle year, brake package and clear caliper details when requesting a fitment check.

Vehicle Applications
