Wilwood Front ProMatrix D945 Pads for Jeep Grand Cherokee with Akebono Brakes (1999–2004)

The D945 ProMatrix front pad is the Akebono-pattern selection listed for these Grand Cherokee applications. A nominal thickness of 0.73 inch is published alongside a 0.725-inch drawing, making the caliper identification and physical plate outline the useful ordering checks. Wilwood Engineering is a designer and manufacturer of disc brake systems and components, founded by Bill Wood in 1977 and based in Camarillo, California. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support its motorsport, street-performance and specialized applications. Each is selected according to the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 150-D0945K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D945
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .73 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 5.300 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

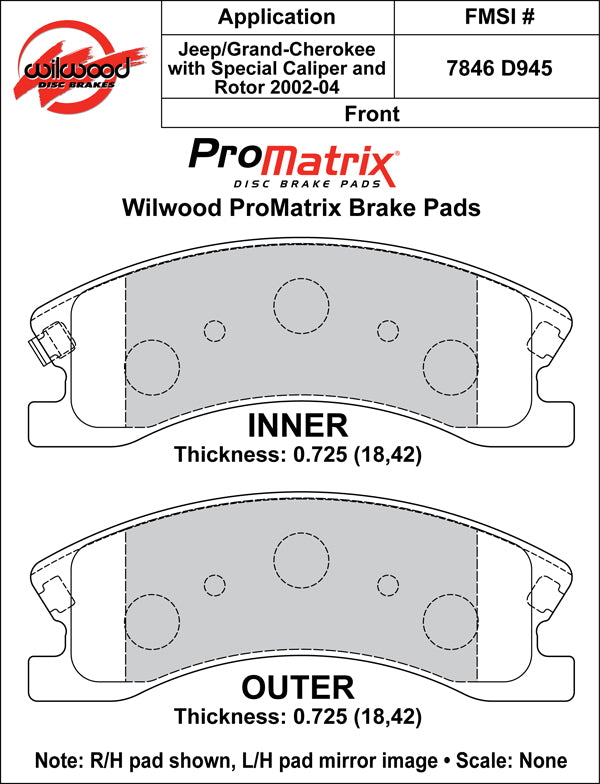

• Drawing thickness, inner / outer: .725 / .725 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Verify Akebono front hardware on the actual 1999–2004 Grand Cherokee, especially where calipers have been replaced. The same vehicle years also use other front-brake configurations, so the model-year match by itself is insufficient.

Application coverage, subject to the brake and equipment qualifications below: Jeep Grand Cherokee (1999–2004).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.
