Wilwood Rear ProMatrix D935 Pads for Ford Expedition and Lincoln Navigator (2003–2006)

This ProMatrix rear set uses the D935 profile on the specified Expedition and Navigator generation. The exact product specification is 0.79 inch, while the illustrated side view gives 0.785 inch; the difference is retained for an accurate hardware comparison. Bill Wood founded Wilwood Engineering in 1977. From its base in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Compatibility with the complete brake system governs selection of the individual components.

Technical Details

• Manufacturer part number: 150-D0935K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D935
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .79 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 3.700 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

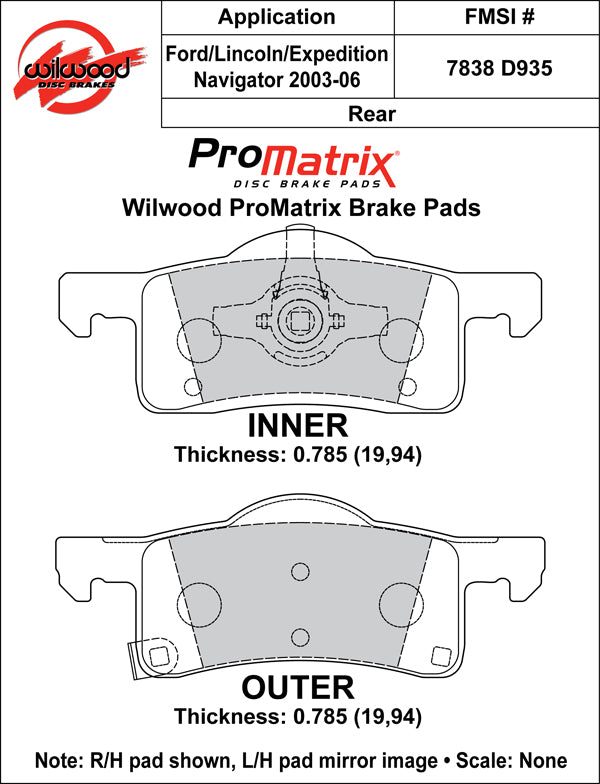

• Drawing thickness, inner / outer: .785 / .785 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Confirm the rear caliper and pad-retention shape on the 2003–2006 vehicle. Earlier or later Expedition and Navigator brakes should not be inferred from the model names alone.

Application coverage, subject to the brake and equipment qualifications below: Ford Expedition (2003–2006); Lincoln Navigator (2003–2006).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.
