Wilwood Front ProMatrix Pads for Outback (2002–2012), Forester (2003–2011), Impreza (2001–2010), Legacy (2003–2009) and Saab 9-2X (2005–2006)

The D929 ProMatrix set replaces the 0.66-inch nominal front pads used in the listed Subaru and Saab brake packages. Several Impreza-derived trims appear, but their names do not establish compatibility with every factory or converted performance caliper. The complete brake system's requirements guide the selection of individual Wilwood components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 150-D0929K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D929
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .66 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 3.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

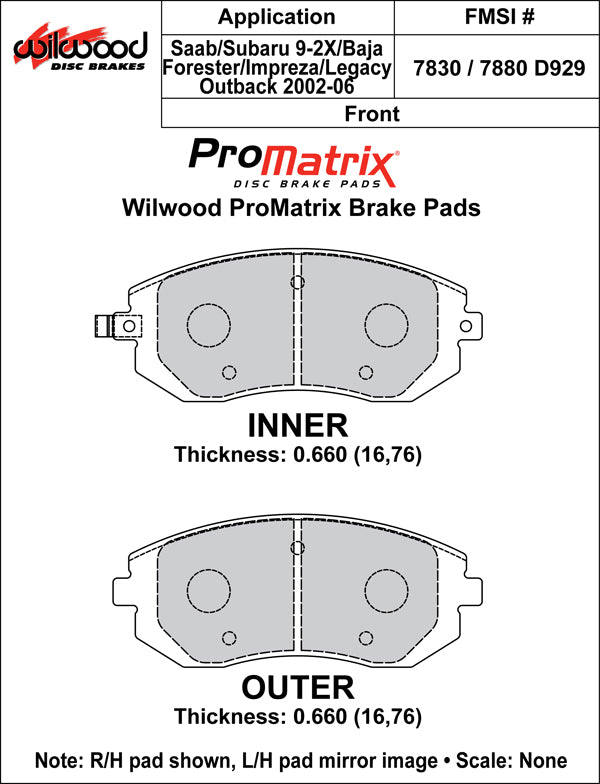

• Drawing thickness, inner / outer: .660 / .660 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Read the engine, L, RS, TS, WRX and Outback Sport conditions with the exact model-year row. Rear disc or drum equipment and the October 2001 production qualification are also relevant where specified.

Application coverage, subject to the brake and equipment qualifications below: Subaru Outback (2002–2012); Subaru Forester (2003–2011); Subaru Impreza (2001–2010); Subaru Legacy (2003–2009); Saab 9-2X (2005–2006).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

Use PMB Performance's 20-plus years of experience when the fitted brake package is uncertain. A caliper reference and comparison with the removed pad are useful alongside the vehicle's year and model.

Vehicle Applications
