Wilwood Front ProMatrix Brake Pads for Sebring/Stratus (2001–2005), Eclipse/Galant (2001–2011), Lancer (2004–2006), Compass/Patriot (2007–2008) and Caliber (2007)

The D866 front pad appears across several related brake configurations, but the individual model conditions are substantial. This ProMatrix set has a nominal 0.62-inch thickness and must match the particular caliper rather than just the vehicle's manufacturer. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with each component selected to suit the complete brake system.

Technical Details

• Manufacturer part number: 150-D0866K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D866
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .62 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.100 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

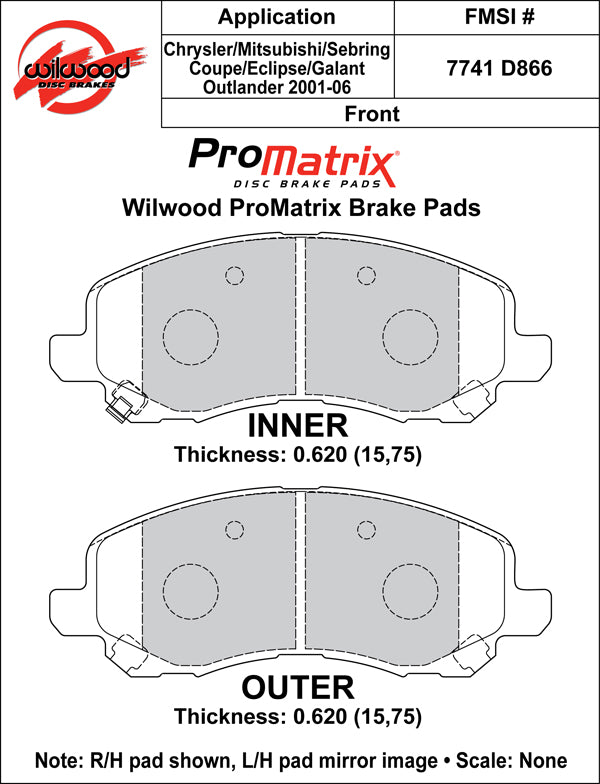

• Drawing thickness, inner / outer: .620 / .620 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Coverage includes Sebring, Stratus, Eclipse, Galant, Lancer, Compass, Patriot and Caliber with different years. Coupe bodywork, engine displacement, Ralliart or Sportback trim and rear drum or disc equipment qualify the applicable rows.

Application coverage, subject to the brake and equipment qualifications below: Chrysler Sebring (2001–2005); Dodge Stratus (2001–2005); Mitsubishi Eclipse (2001–2011); Mitsubishi Galant (2001–2011); Mitsubishi Lancer (2004–2006); Jeep Compass (2007–2008); Jeep Patriot (2007–2008); Dodge Caliber (2007).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.
