Wilwood Rear ProMatrix D865 Pads for Honda Pilot (2003–2008), Acura MDX (2001–2006) and Honda Odyssey (2002–2004)

This D865 pad set provides ProMatrix rear friction for the specified Honda and Acura applications. The nominal 0.61-inch pad thickness is shared across the listed profile, while Pilot, MDX and Odyssey have separate coverage periods. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. Its work includes the design and manufacture of disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component choice must suit the complete brake system, including its intended use and mating hardware.

Technical Details

• Manufacturer part number: 150-D0865K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D865
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .61 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 1.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low
• Drawing thickness, inner / outer: .610 / .610 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

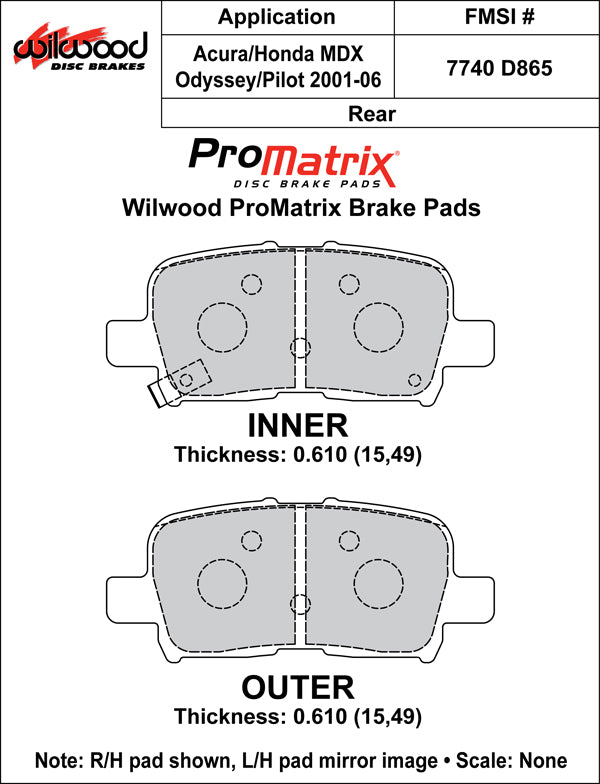

Confirm the rear caliper retains the illustrated D865 arrangement. Do not extend Odyssey coverage beyond 2004 or MDX coverage beyond 2006 on the strength of the later Pilot dates.

Application coverage, subject to the brake and equipment qualifications below: Honda Pilot (2003–2008); Acura MDX (2001–2006); Honda Odyssey (2002–2004).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.

Vehicle Applications
