Product details

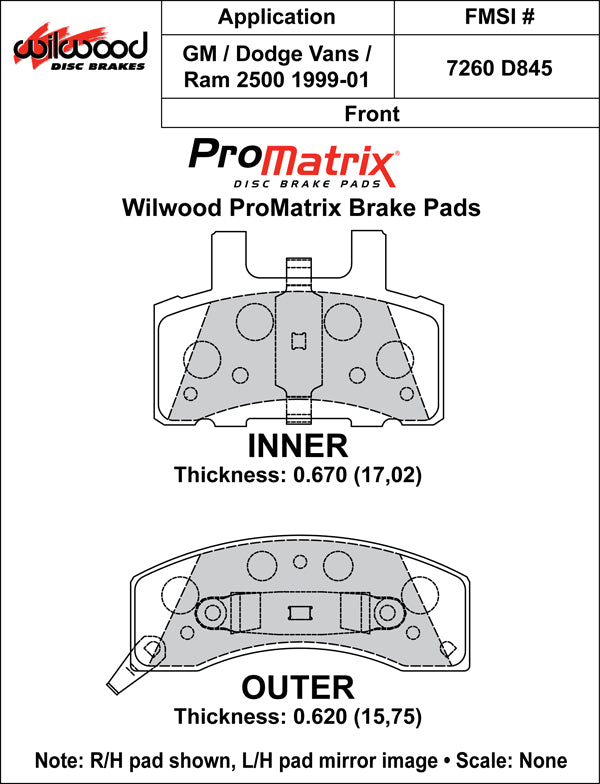

Wilwood's D845 illustration shows separate inner and outer front pads for the referenced GM and Dodge van/Ram brake profile. The ProMatrix set's nominal 0.67-inch specification corresponds to the thicker inner pad; the outer drawing is 0.620 inch. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Each part is selected to match the complete brake system.
Technical Details
- Manufacturer part number: 150-D0845K
- Pad type: ProMatrix replacement brake pad set
- Pad profile: D845
- Quantity: 4 pads
- Position: Front
- Nominal thickness (Wilwood specification): .67 inch
- Compatible rotor material: Steel, Iron
- Compound application: Street, autocross and track-day applications
- Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
- Factory bedded: No
- Published weight: 4.200 lb
- Wilwood dust rating: Low to Moderate
- Wilwood noise rating: Low
- Drawing thickness, inner / outer: .670 / .620 inch
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Fitment & Compatibility
Use both illustrated plates to identify the caliper and its retaining arrangement. The graphic's broad vehicle caption does not establish every van, Ram weight class or model-year brake package, so confirm the hardware directly before selection.
Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference
For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.
