Wilwood Front ProMatrix D843 Pads for Escape (2001–2007), Tribute (2001–2006) and Mariner (2005–2007)

This 0.73-inch ProMatrix set uses the D843 front pad for the specified compact SUV applications. Rear drum equipment and production dates distinguish several rows, even though the pads being replaced are at the front. The complete brake system's requirements guide the selection of individual Wilwood components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 150-D0843K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D843
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .73 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.700 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

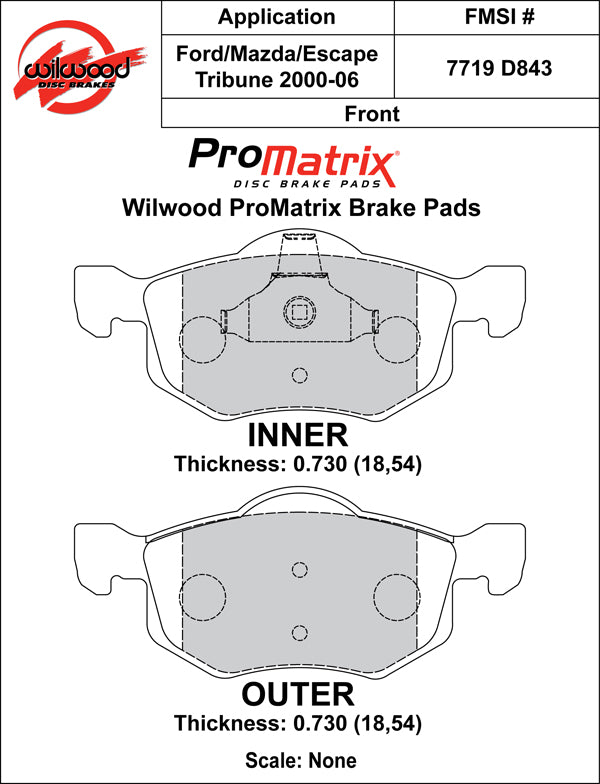

• Drawing thickness, inner / outer: .730 / .730 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Confirm the build date on 2004 applications: the table includes separate May/June and August 1/August 2 transitions. Use the matching rear-brake equipment and physical front pad shape rather than registration year alone.

Application coverage, subject to the brake and equipment qualifications below: Ford Escape (2001–2007); Mazda Tribute (2001–2006); Mercury Mariner (2005–2007).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.
