Wilwood Front D833 ProMatrix Pads for Explorer/Explorer Sport Trac/Mountaineer (2002–2005), Ranger (2003–2011), B2300 (2003–2010), B3000 (2003–2007) and B4000 (2003–2009)

The D833 front set supplies 0.65-inch ProMatrix pads for the later truck applications listed here. Ranger and Mazda B-Series coverage extends beyond the Explorer-family years, so one combined year range cannot be applied to every model. A complete brake system depends on compatible component selection. Wilwood Engineering designs and manufactures disc brake systems along with calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized use. Bill Wood founded Wilwood in 1977; the company is based in Camarillo, California.

Technical Details

• Manufacturer part number: 150-D0833K
• Pad type: ProMatrix replacement brake pad set

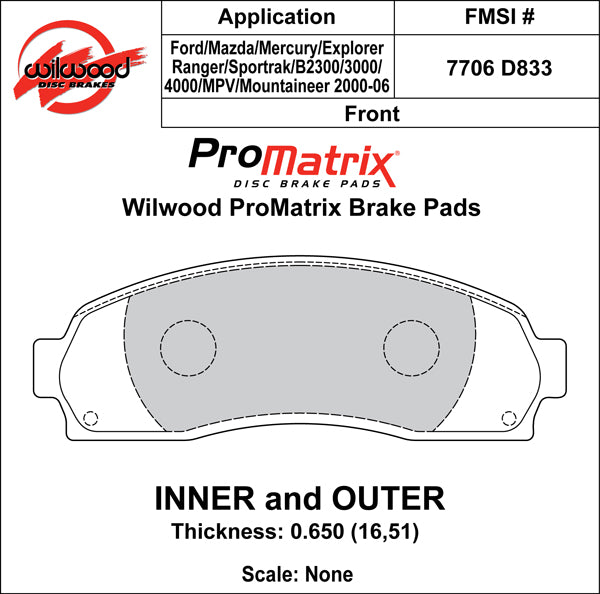

• Pad profile: D833
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .65 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Check Explorer and Explorer Sport Trac separately, including the Sport Trac exception on the relevant Explorer row. B2300, B3000 and B4000 also have different ending years; use the full model entry when matching the front brake.

Application coverage, subject to the brake and equipment qualifications below: Ford Explorer (2002–2005); Ford Explorer Sport Trac (2002–2005); Ford Ranger (2003–2011); Mazda B2300 (2003–2010); Mazda B3000 (2003–2007); Mazda B4000 (2003–2009); Mercury Mountaineer (2002–2005).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

Use PMB Performance's 20-plus years of experience when the fitted brake package is uncertain. A caliper reference and comparison with the removed pad are useful alongside the vehicle's year and model.
