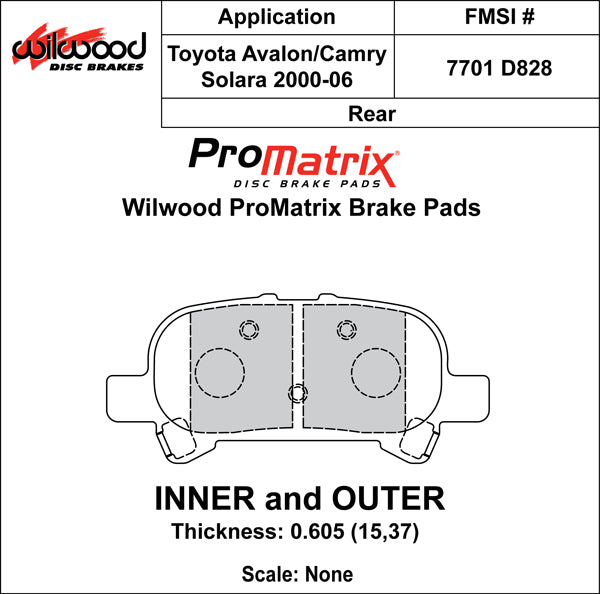

Wilwood Rear ProMatrix D828 Pads for Toyota Avalon (1998–2007), Solara (1999–2008) and Camry (2000–2006)

Toyota's D828 rear disc-pad pattern is supplied here in ProMatrix compound at a nominal 0.605-inch thickness. The application details distinguish engine and assembly combinations within Camry and Solara coverage, so the rear caliper must match as well as the model. Wilwood Engineering, founded in 1977 by Bill Wood, designs and manufactures disc brake systems and components in its role as a Camarillo, California-based brake specialist. Its range serves motorsport, street-performance and specialized applications through calipers, brake rotors, master cylinders, valves, fittings and brake lines. Selection of each part must match the complete brake system's requirements.

Technical Details

• Manufacturer part number: 150-D0828K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D828
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .605 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 1.700 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Follow the USA-built, V6, four-cylinder and trim qualifications where listed, including the September 1999 production detail. Confirm rear disc equipment rather than assuming every Camry or Solara in the year range uses this pad.

Application coverage, subject to the brake and equipment qualifications below: Toyota Avalon (1998–2007); Toyota Solara (1999–2008); Toyota Camry (2000–2006).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.
