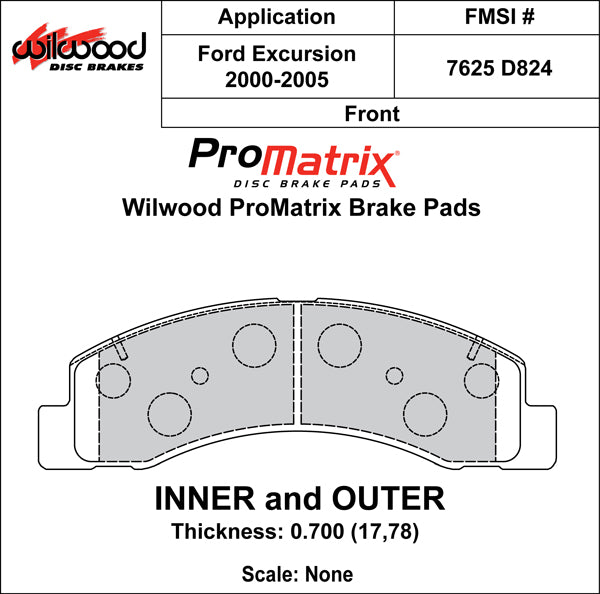

Wilwood Front ProMatrix D824 Pads for F-250/F-350 Super Duty (1999–2004) and Excursion (2000–2005)

This D824 set provides ProMatrix friction for the front brakes of the specified Ford Super Duty and Excursion applications. The 0.70-inch front pad is a different service item from the rear pads used on the same vehicles. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its component range, with individual parts chosen to match the complete system rather than considered in isolation.

Technical Details

• Manufacturer part number: 150-D0824K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D824
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .70 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 5.900 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Check the truck's exact year and two- or four-wheel-drive entry before matching the front-caliper plate. The F-250 and F-350 Super Duty range ends in 2004 here; the Excursion range extends through 2005.

Application coverage, subject to the brake and equipment qualifications below: Ford Excursion (2000–2005); Ford F-250 Super Duty (1999–2004); Ford F-350 Super Duty (1999–2004).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.

Vehicle Applications
