Wilwood Front ProMatrix D820 Brake Pads for Dodge Dakota and Durango (2000–2002)

The D820 front profile is the replacement pattern listed for these 2000–2002 Dodge trucks and SUVs. A nominal 0.79-inch pad thickness distinguishes this ProMatrix set from other Dakota and Durango brake applications outside the stated years. Wilwood Engineering's range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to meet the needs of a complete brake system. The company was founded by Bill Wood in 1977 and is based in Camarillo, California, designing and manufacturing disc brake systems for motorsport, street-performance and specialized applications.

Technical Details

• Manufacturer part number: 150-D0820K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D820
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .79 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 5.600 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

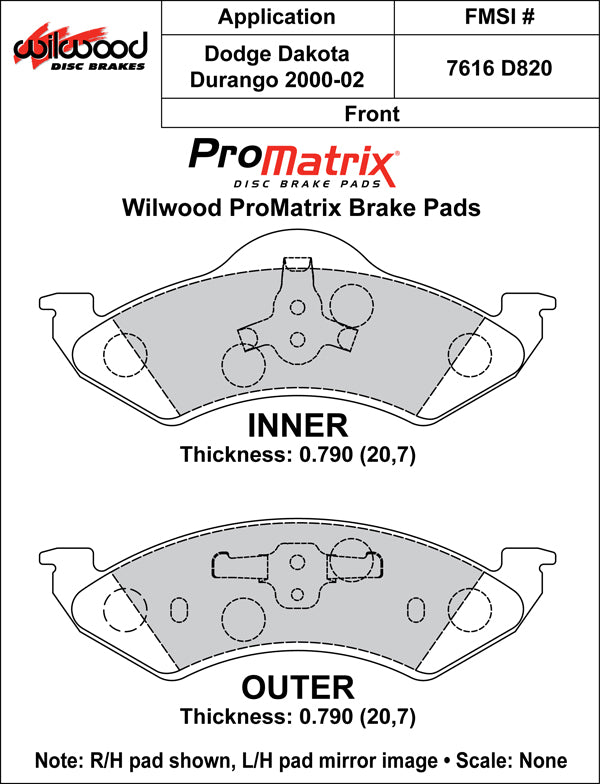

• Drawing thickness, inner / outer: .790 / .790 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Compare the backing plate with the existing front pads and confirm the caliper has not been converted. Sharing a Dakota or Durango model name with a different production year does not establish the same brake package.

Application coverage, subject to the brake and equipment qualifications below: Dodge Dakota (2000–2002); Dodge Durango (2000–2002).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

With over 20 years of experience, PMB Performance can help compare the pad profile with your brake configuration. Include the vehicle year, brake package and clear caliper details when requesting a fitment check.

Vehicle Applications
