Wilwood Front ProMatrix D815A Pads for Selected Cube, SX4, Versa, I35, Maxima, Sentra and Altima Brakes (2002–2019)

The D815A ProMatrix variant has a nominal 0.605-inch thickness and its own front-brake application list. It is not interchangeable by name alone with the thicker D815 set, even where Nissan model coverage appears to overlap. For Wilwood Engineering, component selection forms part of matching a complete brake system to its application. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures disc brake systems and a range of calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.

Technical Details

• Manufacturer part number: 150-D0815AK
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D815A
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .605 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 3.600 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

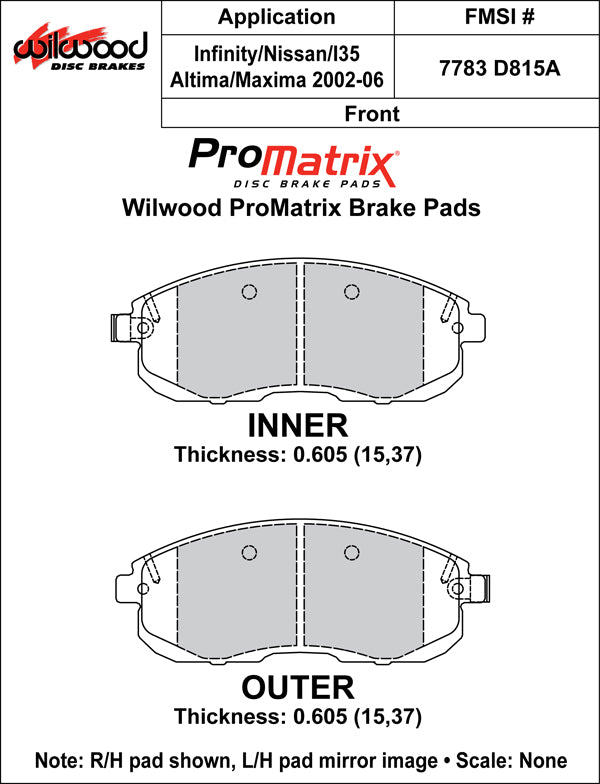

• Drawing thickness, inner / outer: .605 / .605 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Review every trim and engine qualification for Cube, Suzuki SX4, Versa, Infiniti I35, Maxima, Sentra and Altima. Certain rows exclude SE-R or four-wheel antilock equipment, while others specify 1.8-liter models; those conditions remain part of the selection.

Application coverage, subject to the brake and equipment qualifications below: Nissan Cube (2011–2013); Suzuki SX4 (2007–2012); Nissan Versa (2007–2013); Infiniti I35 (2002–2004); Nissan Maxima (2002–2003); Nissan Sentra (2011–2019); Nissan Altima (2002–2006).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

Use PMB Performance's 20-plus years of experience when the fitted brake package is uncertain. A caliper reference and comparison with the removed pad are useful alongside the vehicle's year and model.

Vehicle Applications
