Wilwood Rear ProMatrix D813 Brake Pads for Hyundai Elantra Sedan (2009–2010)

The D813 rear pad in this ProMatrix set is listed for the 2009–2010 Elantra sedan. Its nominal 0.59-inch thickness and illustrated plate geometry are the relevant service dimensions for the existing rear disc caliper. Bill Wood established Wilwood Engineering in 1977, and the company is based in Camarillo, California. It designs and manufactures disc brake systems, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized use. The individual parts must be selected as compatible elements of the complete brake system.

Technical Details

• Manufacturer part number: 150-D0813K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D813
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .59 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 1.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

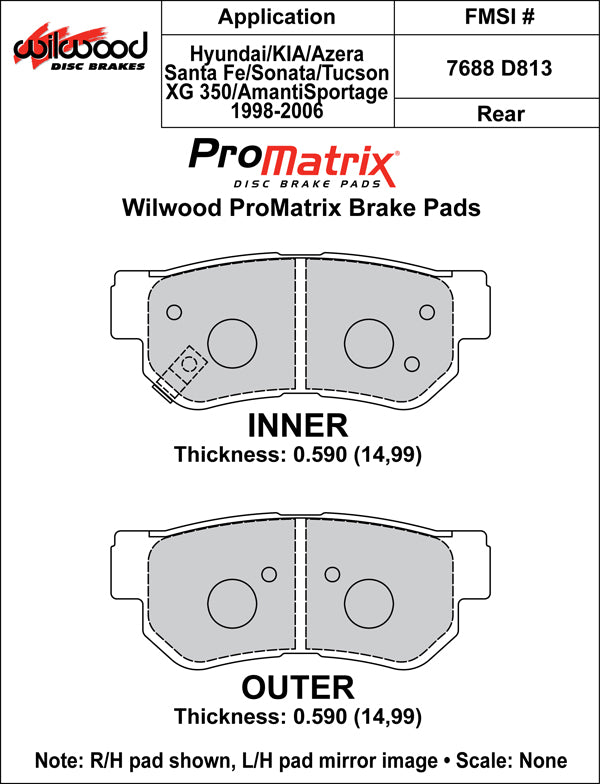

• Drawing thickness, inner / outer: .590 / .590 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

The body-style qualification is sedan. Confirm rear disc equipment and the D813 retaining features rather than extending the listing to another Elantra body style or brake conversion.

Application coverage, subject to the brake and equipment qualifications below: Hyundai Elantra (2009–2010).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.

Vehicle Applications
