Wilwood Front ProMatrix D803 Brake Pads for Ford Windstar (1999–2003)

The later Windstar front-brake application listed here uses the D803 pad, distinct from the D601 profile associated with earlier years. This ProMatrix set supplies the 0.70-inch specification for the retained front calipers. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 150-D0803K
• Pad type: ProMatrix replacement brake pad set

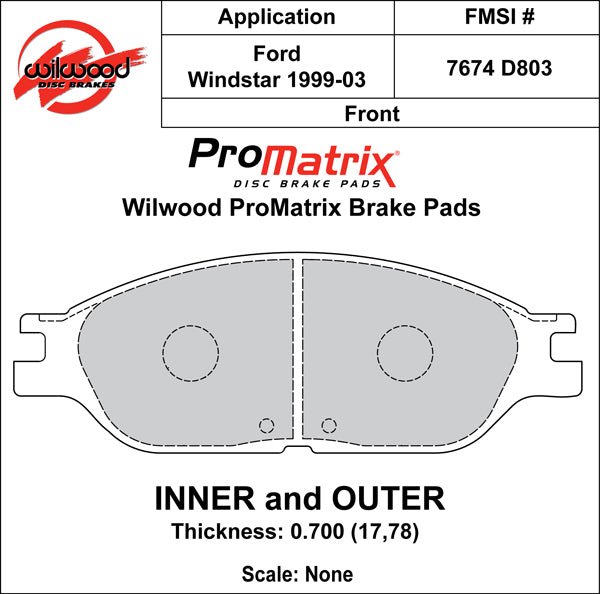

• Pad profile: D803
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .70 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 5.000 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Verify the 1999–2003 Windstar application and compare the pad's locating edges with the installed caliper. The preceding Windstar generation should not be included solely because the van name is unchanged.

Application coverage, subject to the brake and equipment qualifications below: Ford Windstar (1999–2003).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.

Vehicle Applications
