Wilwood Rear ProMatrix D792 Pads for Selected Silverado 1500, Sierra 1500, DTS, DeVille, Tahoe and Yukon Brakes (1999–2008)

The D792 ProMatrix rear pad spans selected GM truck, SUV and Cadillac applications, with a nominal 0.64-inch thickness. Because several brake packages appear under the same vehicle name, the rear caliper and option code are essential selection details. Wilwood Engineering is a designer and manufacturer of disc brake systems and components, founded by Bill Wood in 1977 and based in Camarillo, California. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support its motorsport, street-performance and specialized applications. Each is selected according to the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 150-D0792K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D792
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .64 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 3.600 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

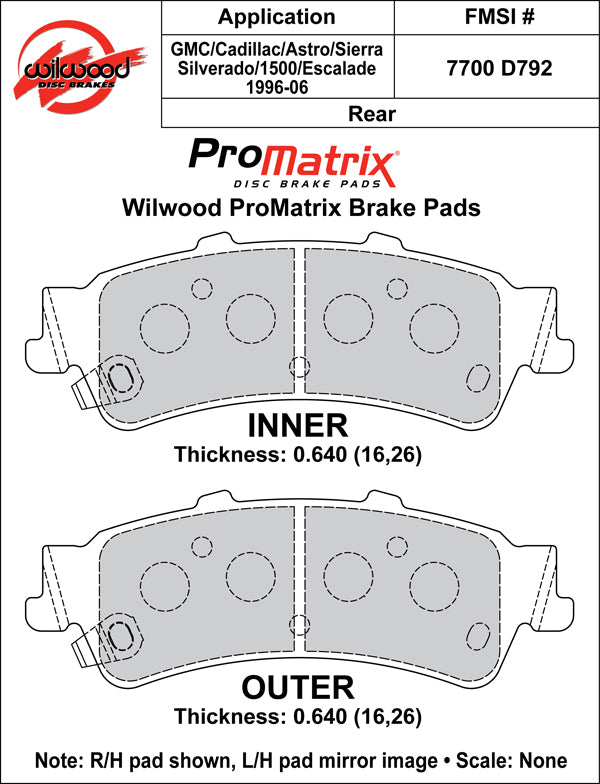

• Drawing thickness, inner / outer: .640 / .640 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Check the single-piston versus heavy-duty two-piston descriptions against the actual caliper before ordering. Cadillac J55 entries and six-lug truck applications have their own year limits; neither vehicle name nor wheel count alone proves that the D792 plate is correct.

Application coverage, subject to the brake and equipment qualifications below: Chevrolet Silverado 1500 Pickup (1999–2007); GMC Sierra 1500 Pickup (1999–2007); Cadillac DTS (2006–2008); Cadillac DeVille (2000–2005); Chevrolet Tahoe (2001); GMC Yukon (2001–2002).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

Use PMB Performance's 20-plus years of experience when the fitted brake package is uncertain. A caliper reference and comparison with the removed pad are useful alongside the vehicle's year and model.
