Wilwood Rear ProMatrix D791 Brake Pads for Jeep Grand Cherokee (1999–2004)

Grand Cherokee rear-disc service in the listed 1999–2004 applications calls for the D791 profile. This ProMatrix set is nominally 0.66 inch thick and is selected by the rear brake arrangement, not by assuming a front-caliper brand identifies every pad on the vehicle. Bill Wood founded Wilwood Engineering in 1977. From its base in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Compatibility with the complete brake system governs selection of the individual components.

Technical Details

• Manufacturer part number: 150-D0791K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D791
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .66 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 3.300 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

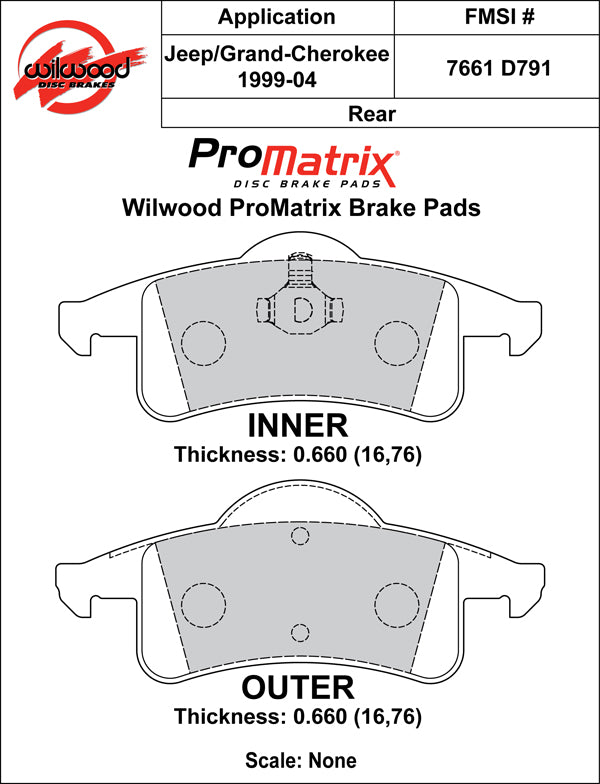

• Drawing thickness, inner / outer: .660 / .660 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

The application entries mention both Akebono and Teves configurations. Compare the rear pad outline and retaining details with the installed hardware, keeping this rear set separate from the different front pad choices for the same vehicle.

Application coverage, subject to the brake and equipment qualifications below: Jeep Grand Cherokee (1999–2004).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.

Vehicle Applications
