Wilwood Rear ProMatrix Pads for Impreza (1999–2003), Legacy (2000–2009), Outback (2000–2006) and Forester (2001–2003)

The D770 rear plate is shared by the Subaru disc-brake packages listed for this ProMatrix set. A nominal 0.545-inch pad thickness accompanies application distinctions that include RS, WRX and L models rather than blanket coverage of every Subaru rear brake. The complete brake system's requirements guide the selection of individual Wilwood components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.

Technical Details

• Manufacturer part number: 150-D0770K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D770
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .545 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 1.600 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

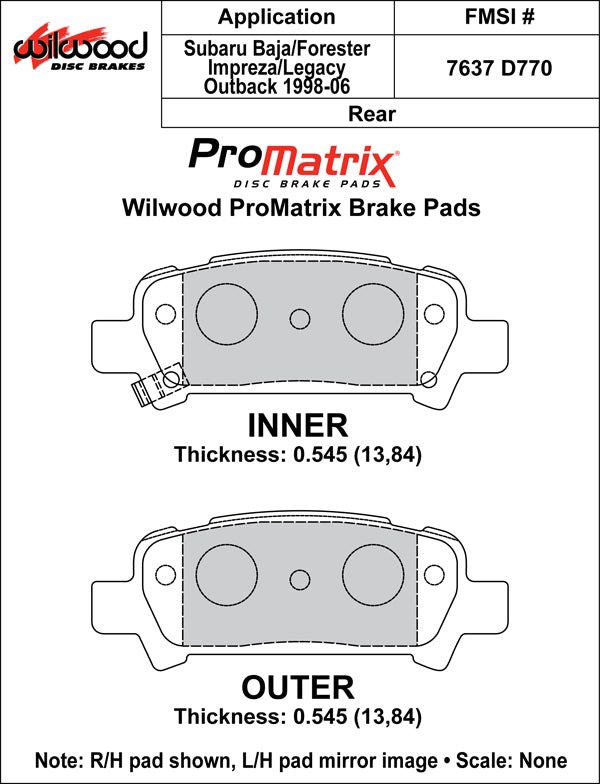

• Drawing thickness, inner / outer: .545 / .545 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Confirm rear disc equipment and the exact model-year row. Some applications distinguish production through September 2001 from October 2001 onward, so registration year alone may not settle the pad selection.

Application coverage, subject to the brake and equipment qualifications below: Subaru Impreza (1999–2003); Subaru Legacy (2000–2009); Subaru Outback (2000–2006); Subaru Forester (2001–2003).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance brings over 20 years of brake and parts experience to fitment checks. Send your vehicle details and caliper identification if you need help confirming this pad selection.

Vehicle Applications
