Wilwood Rear ProMatrix Brake Pads for Excursion (2000–2005) and F-250/F-350 Super Duty (1999–2004)

These D757 rear pads serve the specified Excursion and early Super Duty disc-brake configurations. The ProMatrix set replaces the friction components at a nominal 0.685-inch thickness without changing the caliper or rotor arrangement. Since its founding by Bill Wood in 1977, Wilwood Engineering has developed a range serving motorsport, street-performance and specialized brake applications. Based in Camarillo, California, it designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines. Each component should be selected for compatibility with the complete braking system.

Technical Details

• Manufacturer part number: 150-D0757K
• Pad type: ProMatrix replacement brake pad set

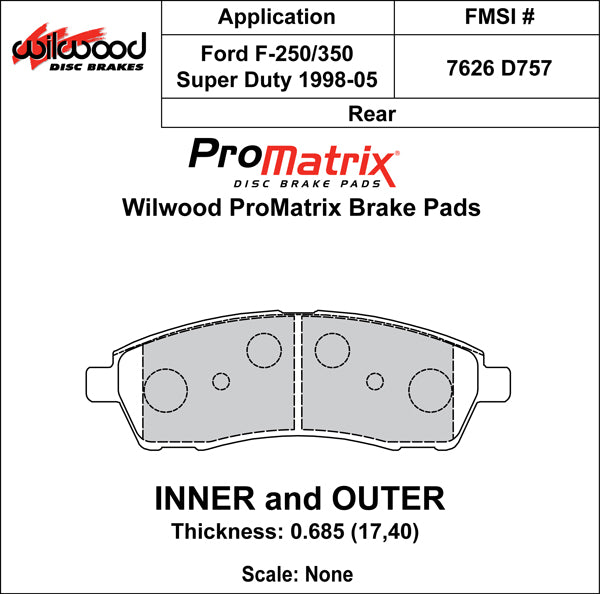

• Pad profile: D757
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .685 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.000 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Both two- and four-wheel-drive entries appear for the listed trucks. Keep the Excursion 2000–2005 range separate from the 1999–2004 F-250 and F-350 Super Duty range when checking the fitted rear caliper.

Application coverage, subject to the brake and equipment qualifications below: Ford Excursion (2000–2005); Ford F-250 Super Duty (1999–2004); Ford F-350 Super Duty (1999–2004).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

Use PMB Performance's 20-plus years of experience when the fitted brake package is uncertain. A caliper reference and comparison with the removed pad are useful alongside the vehicle's year and model.

Vehicle Applications
