Wilwood Front ProMatrix D730 Pads for Selected Vision, 300M, Concorde, Intrepid, LHS and Neon Brakes (1993–2005)

The D730 ProMatrix set is used at the front in the listed applications, with different inner and outer pad thicknesses shown in the drawing. Its rear caption conflicts with the application and independent D730 profile reference, so use the physical outline and verified front brake configuration. A complete brake system depends on compatible component selection. Wilwood Engineering designs and manufactures disc brake systems along with calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized use. Bill Wood founded Wilwood in 1977; the company is based in Camarillo, California.

Technical Details

• Manufacturer part number: 150-D0730K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D730
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .67 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 3.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

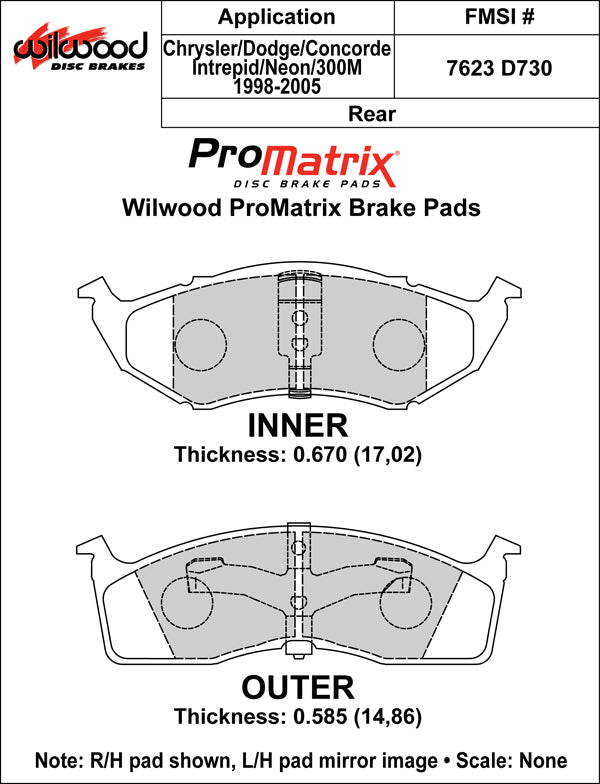

• Drawing thickness, inner / outer: .670 / .585 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Read each model's year range and rear-brake option separately, including the Neon SRT-4 exclusion. The drawing dimensions the inner pad at 0.670 inch and outer at 0.585 inch; do not assume the nominal 0.67-inch specification describes both pieces identically.

Application coverage, subject to the brake and equipment qualifications below: Eagle Vision (1993–1994); Chrysler 300M (1999–2004); Chrysler Concorde (1998–2004); Dodge Intrepid (1998–2004); Chrysler LHS (1999–2001); Dodge Neon (2001–2005).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.
