Wilwood Rear ProMatrix Pads for S10 Blazer (1997–2004), S10 Pickup and Sonoma (1996–2004), Bravada (1997–2001) and Jimmy (1997–2005)

The D729 rear pad shape supports the specified compact GM truck and SUV disc-brake applications. ProMatrix friction is supplied at a nominal 0.61-inch thickness, with the retained rear caliper determining whether this is the correct service set. Wilwood Engineering, founded in 1977 by Bill Wood, designs and manufactures disc brake systems and components in its role as a Camarillo, California-based brake specialist. Its range serves motorsport, street-performance and specialized applications through calipers, brake rotors, master cylinders, valves, fittings and brake lines. Selection of each part must match the complete brake system's requirements.

Technical Details

• Manufacturer part number: 150-D0729K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D729
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .61 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 3.400 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

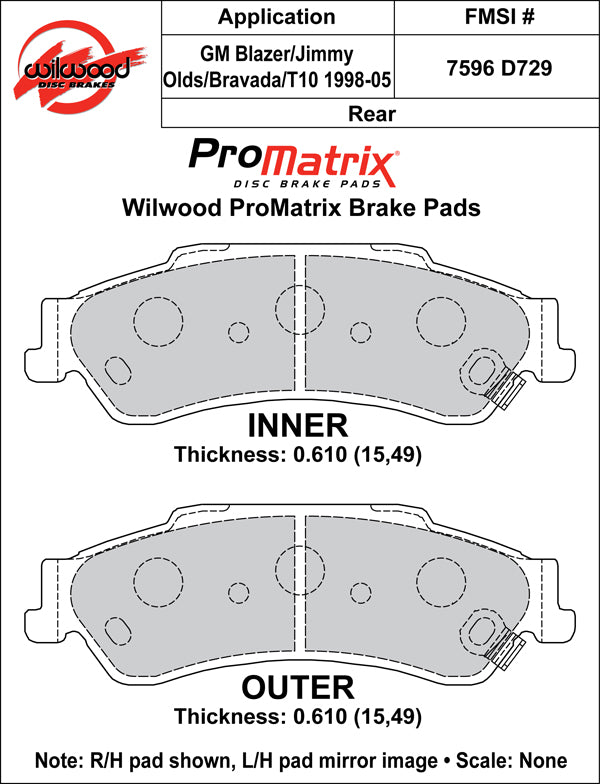

• Drawing thickness, inner / outer: .610 / .610 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Two-wheel drive, four-wheel drive and AWD entries have different qualifications. Confirm that the vehicle actually has the listed rear disc hardware; a drum-brake description cannot establish compatibility for a disc pad.

Application coverage, subject to the brake and equipment qualifications below: Chevrolet S10 Blazer (1997–2004); Chevrolet S10 Pickup (1996–2004); Oldsmobile Bravada (1997–2001); GMC Jimmy (1997–2005); GMC Sonoma (1996–2004).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

With over 20 years of experience, PMB Performance can help compare the pad profile with your brake configuration. Include the vehicle year, brake package and clear caliper details when requesting a fitment check.

Vehicle Applications
