Wilwood Front ProMatrix Pads for Navigator (1998–2002), F-150/F-150 Lightning (1999–2003), F-150 Super Crew (2000–2004), Expedition (1997–2002), F-250 (1997–1999) and F-150 Heritage (2004)

The 0.65-inch D702 front pad serves specified Ford and Lincoln brake packages, including listed Lightning and seven-lug applications. This ProMatrix replacement needs the correct front caliper even when the vehicle has a similar F-150 cab or body designation. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Those components need to be selected together around the complete brake system's requirements.

Technical Details

• Manufacturer part number: 150-D0702K
• Pad type: ProMatrix replacement brake pad set

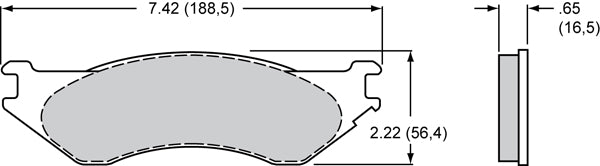

• Pad profile: D702
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .65 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.600 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Check F-150, F-150 Lightning, F-150 Super Crew and F-150 Heritage separately, alongside the F-250, Expedition and Navigator rows. Seven-lug 7700-GVW equipment and five-lug supercharged Lightning entries are distinct configurations rather than interchangeable ordering descriptions.

Application coverage, subject to the brake and equipment qualifications below: Lincoln Navigator (1998–2002); Ford F-150 (1999–2003); Ford F-150 Lightning (1999–2003); Ford F-150 Super Crew (2000–2004); Ford Expedition (1997–2002); Ford F-250 (1997–1999); Ford F-150 Heritage (2004).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.
