Wilwood Rear ProMatrix D702A Brake Pads for Ram 3500 (2001–2004) and Selected Eight-Lug Ram 1500 (2006–2008)

The D702A ProMatrix set is the 0.78-inch rear-disc pad specification listed for these Ram applications. It should not be confused with the thinner D702 front pad used on unrelated Ford brake packages. For Wilwood Engineering, component selection forms part of matching a complete brake system to its application. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures disc brake systems and a range of calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.

Technical Details

• Manufacturer part number: 150-D0702AK
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D702A
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .78 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

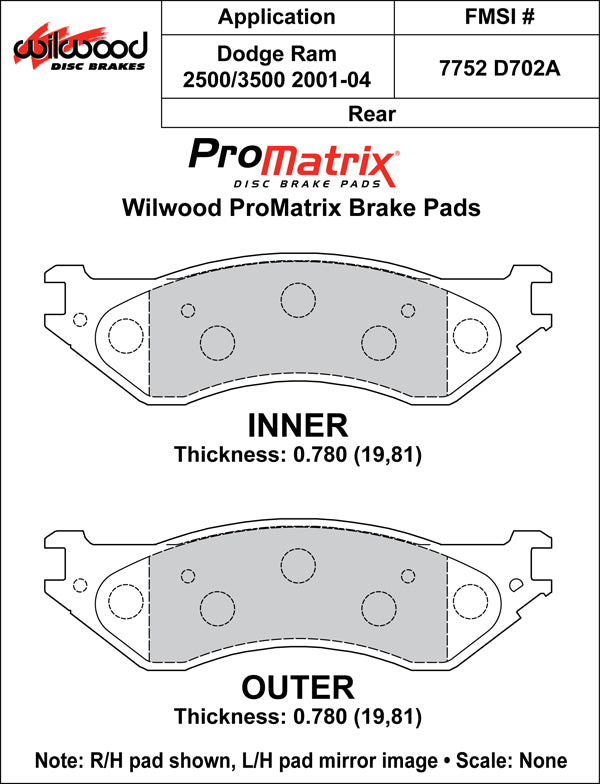

• Drawing thickness, inner / outer: .780 / .780 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Confirm the Ram model year, eight-lug qualification where specified and actual rear-disc caliper. A row that describes drum rear equipment cannot make a disc-brake pad usable in a drum; resolve that equipment discrepancy against the vehicle before ordering.

Application coverage, subject to the brake and equipment qualifications below: Dodge Ram 3500 (2001–2004); Dodge Ram 1500 (2006–2008).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.
