Wilwood Rear ProMatrix D698 Brake Pads for Selected GM Cars and Minivans (1997–2010)

The D698 rear pattern covers several GM car and minivan brake packages, with a nominal 0.54-inch ProMatrix pad thickness. The applications include both standard and option-specific entries, so a shared platform does not make every rear brake interchangeable. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 150-D0698K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D698
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .54 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 2.200 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

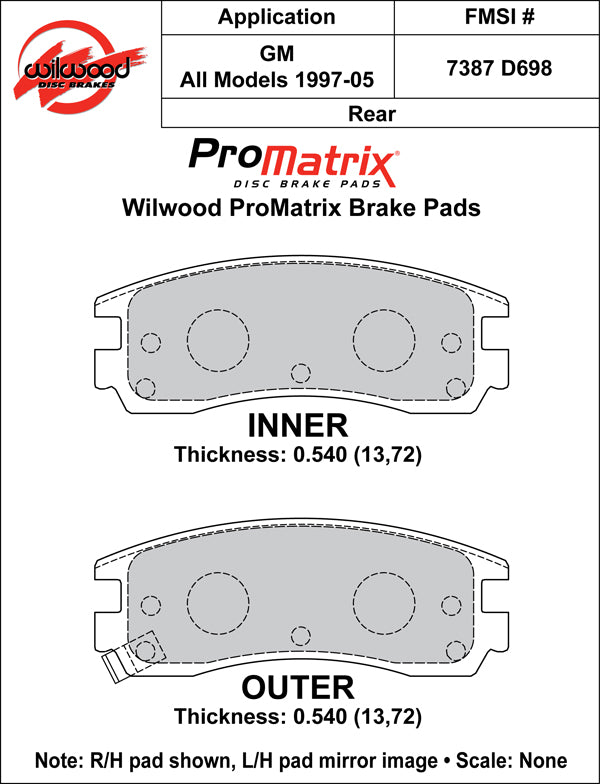

• Drawing thickness, inner / outer: .540 / .540 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Use the individual model-year rows for Intrigue, Grand Prix, Trans Sport, Alero, Silhouette, Aztek, Grand Am, Montana, Venture, Century, Regal, Allure, LaCrosse, Impala, Monte Carlo and Rendezvous. AWD, FWD, ABS and brake-option codes such as JA9, JB9 and JL9 are significant where listed.

Application coverage, subject to the brake and equipment qualifications below: Oldsmobile Intrigue (1998–2002); Pontiac Grand Prix (1997–2003); Pontiac Trans Sport (1997–1999); Oldsmobile Alero (1999–2004); Oldsmobile Silhouette (2002–2004); Pontiac Aztek (2001–2005); Pontiac Grand Am (1999–2005); Pontiac Montana (1999–2005); Chevrolet Venture (1999–2005); Buick Century (1997–2005); Buick Regal (1997–2004); Buick Allure (2008–2009); Buick Lacrosse (2008–2009); Chevrolet Impala (2000–2010); Chevrolet Monte Carlo (2000–2007); Buick Rendezvous (2002–2007).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance brings over 20 years of brake and parts experience to fitment checks. Send your vehicle details and caliper identification if you need help confirming this pad selection.

Vehicle Applications
