Wilwood Front ProMatrix Pads for F-150 (1997–2003), F-150 Heritage (2004), Blackwood (2002) and Navigator (2002) — D679

The D679 front pad pattern applies to the listed five-lug F-150 packages and related Lincoln applications. This ProMatrix set is nominally 0.64 inch thick; the truck's lug count and axle specification are more useful selection details than body style alone. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with each component selected to suit the complete brake system.

Technical Details

• Manufacturer part number: 150-D0679K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D679
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .64 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 5.200 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

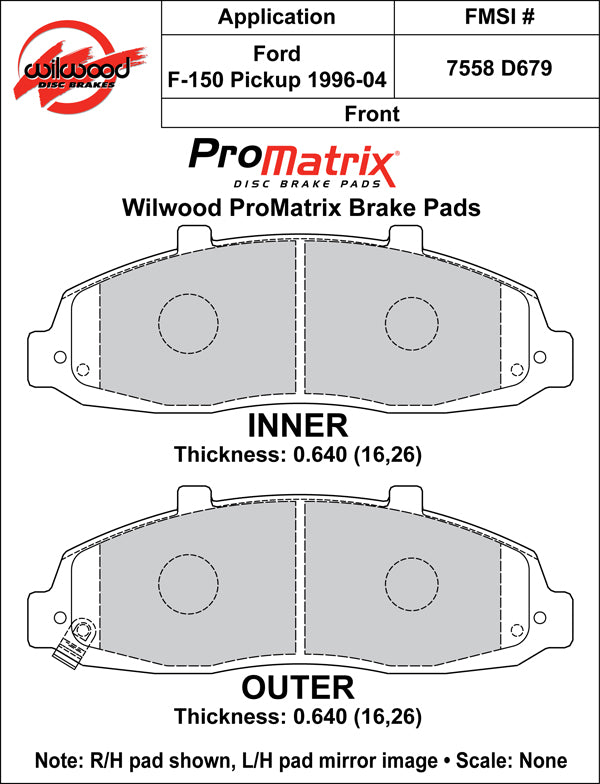

• Drawing thickness, inner / outer: .640 / .640 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Heritage entries exclude the 7700-GVW rear-axle package. Read the two- or four-wheel-drive, rear-brake and special-edition qualifications against your exact F-150, Blackwood or Navigator year before matching the pad outline.

Application coverage, subject to the brake and equipment qualifications below: Ford F-150 (1997–2003); Ford F-150 Heritage (2004); Lincoln Blackwood (2002); Lincoln Navigator (2002).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

Use PMB Performance's 20-plus years of experience when the fitted brake package is uncertain. A caliper reference and comparison with the removed pad are useful alongside the vehicle's year and model.

Vehicle Applications
