Wilwood Front ProMatrix D655F Brake Pads for Dodge Ram 2500 Van and Ram 3500 Van (2001–2003)

The D655F pad profile in this listing is assigned to front brakes on the 2001–2003 Dodge Ram 2500 and 3500 vans. ProMatrix friction and a nominal 0.735-inch thickness identify the replacement set, which is distinct from selecting pads by the Ram badge alone. Wilwood Engineering is a designer and manufacturer of disc brake systems and components, founded by Bill Wood in 1977 and based in Camarillo, California. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support its motorsport, street-performance and specialized applications. Each is selected according to the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 150-D0655FK
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D655F
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .735 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 6.000 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

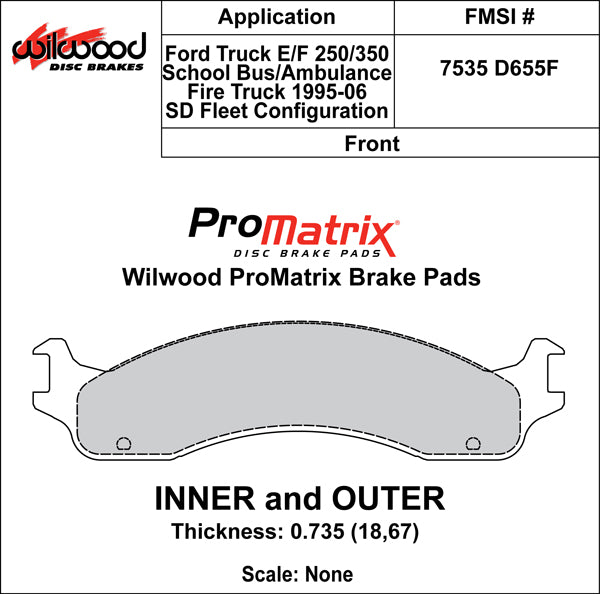

Use the van applications, not the corresponding pickup names, when choosing this set. The drawing includes a Ford fleet application caption for the shared profile; it is useful for shape and measurements, not proof of additional vehicle coverage for this listing.

Application coverage, subject to the brake and equipment qualifications below: Dodge Ram 2500 Van (2001–2003); Dodge Ram 3500 Van (2001–2003).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.

Vehicle Applications
