Wilwood Front ProMatrix D653 Brake Pads for Nissan Sentra (2000–2006)

This ProMatrix set replaces the D653 pads in the listed Nissan Sentra front brake configurations. It uses a nominal 0.67-inch thickness; S, SE and SE-R names need to be read with their specific model-year entries. Bill Wood founded Wilwood Engineering in 1977. From its base in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Compatibility with the complete brake system governs selection of the individual components.

Technical Details

• Manufacturer part number: 150-D0653K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D653
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .67 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 3.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low
• Drawing thickness, inner / outer: .670 / .670 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

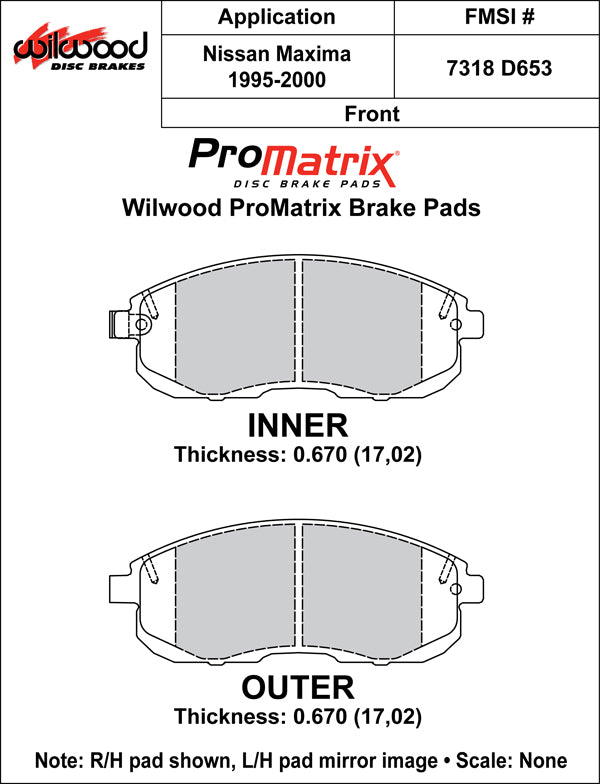

Check the particular Sentra trim and front caliper, including the SE-R Spec V entries. The dimensional graphic also names another Nissan application, but that caption does not expand the Sentra coverage listed here.

Application coverage, subject to the brake and equipment qualifications below: Nissan Sentra (2000–2006).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

With over 20 years of experience, PMB Performance can help compare the pad profile with your brake configuration. Include the vehicle year, brake package and clear caliper details when requesting a fitment check.

Vehicle Applications
