Wilwood Front ProMatrix Pads for Explorer (1995–2001), Ranger/B3000/B4000 (1995–2002), Mountaineer (1997–2001), B2500 (1998–2001), B2300 (1995–1997, 2001–2002) and Explorer Sport Trac (2001)

ProMatrix friction on the D652 plate serves the specified Ford, Mercury and Mazda light-truck front brakes. A nominal 0.65-inch thickness accompanies the profile; two- and four-wheel-drive entries must be checked separately where the table distinguishes them. The Wilwood range brings together calipers, brake rotors, master cylinders, valves, fittings and brake lines for complete-system component selection. Wilwood Engineering was founded by Bill Wood in 1977, is based in Camarillo, California, and designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications.

Technical Details

• Manufacturer part number: 150-D0652K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D652
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .65 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.500 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

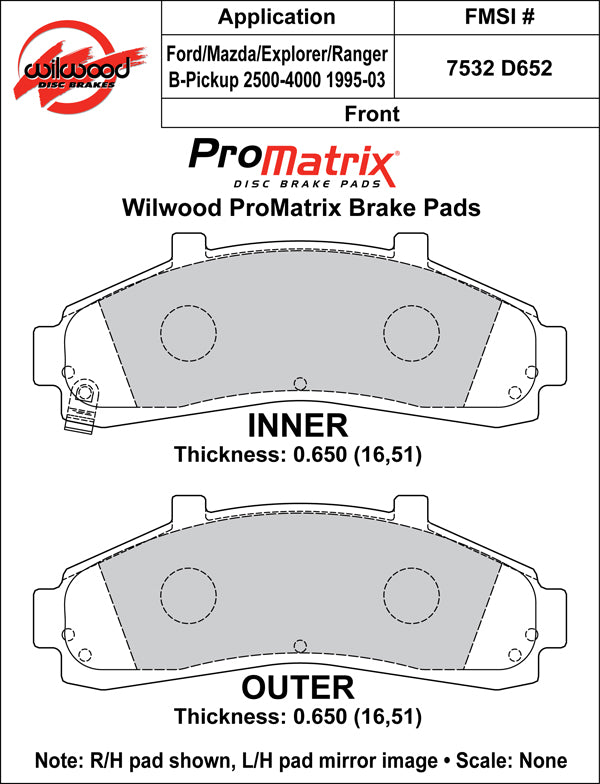

• Drawing thickness, inner / outer: .650 / .650 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Explorer, Explorer Sport Trac, Ranger, Mountaineer, B2300, B2500, B3000 and B4000 do not share one continuous fitment range. In particular, the B2300 entries omit 1998–2000 and the Sport Trac application is 2001 only.

Application coverage, subject to the brake and equipment qualifications below: Ford Explorer (1995–2001); Ford Ranger (1995–2002); Mercury Mountaineer (1997–2001); Mazda B2500 (1998–2001); Mazda B3000 (1995–2002); Mazda B4000 (1995–2002); Mazda B2300 (1995–1997, 2001–2002); Ford Explorer Sport Trac (2001).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance brings over 20 years of brake and parts experience to fitment checks. Send your vehicle details and caliper identification if you need help confirming this pad selection.
