Wilwood Front ProMatrix D632 Brake Pads for Ford E-150 Econoline (1994–2002) and E-150 (2003)

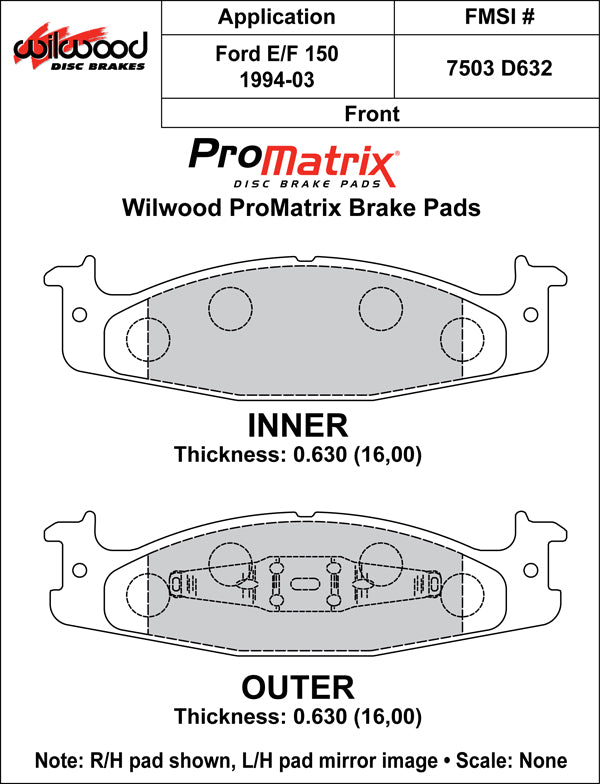

This D632 set supplies ProMatrix replacement pads for the listed E-150 front disc brakes. The 0.63-inch pad specification and illustrated backing plate provide the hardware checks needed when a van has replacement or modified calipers. Since its founding by Bill Wood in 1977, Wilwood Engineering has developed a range serving motorsport, street-performance and specialized brake applications. Based in Camarillo, California, it designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines. Each component should be selected for compatibility with the complete braking system.

Technical Details

• Manufacturer part number: 150-D0632K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D632
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .63 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low
• Drawing thickness, inner / outer: .630 / .630 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Coverage lists the E-150 Econoline name for 1994–2002 and E-150 for 2003. This set should not be extended to E-250 or E-350 brakes solely because the vans share an Econoline body.

Application coverage, subject to the brake and equipment qualifications below: Ford E-150 Econoline (1994–2002); Ford E-150 (2003).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.

Vehicle Applications
