Wilwood Front ProMatrix Pads for Concorde/Intrepid (1993–1997), Vision (1995–1997) and LHS (1994–1997)

These D591 pads serve the front calipers of the listed Chrysler LH-platform applications. The inner and outer pads have different thicknesses in the drawing, which adds a necessary check beyond the page's single nominal thickness. Wilwood Engineering, founded in 1977 by Bill Wood, designs and manufactures disc brake systems and components in its role as a Camarillo, California-based brake specialist. Its range serves motorsport, street-performance and specialized applications through calipers, brake rotors, master cylinders, valves, fittings and brake lines. Selection of each part must match the complete brake system's requirements.

Technical Details

• Manufacturer part number: 150-D0591K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D591
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .71 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 3.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

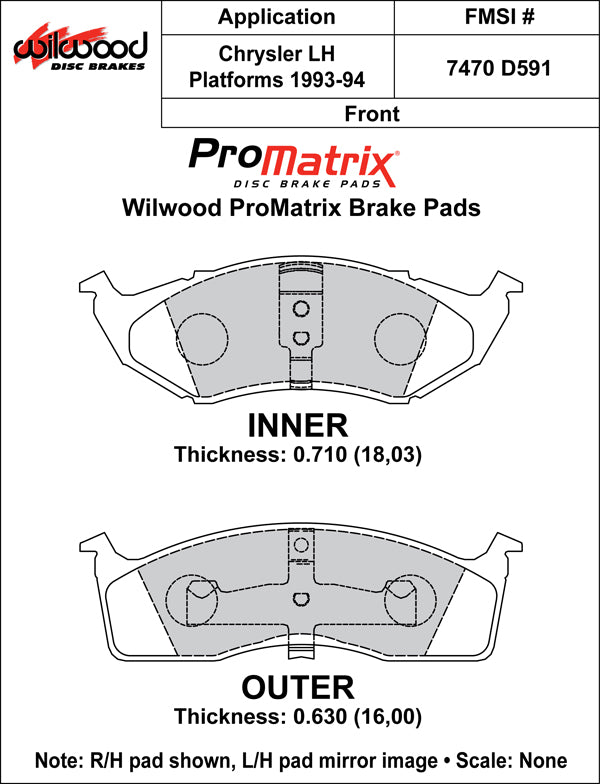

• Drawing thickness, inner / outer: .710 / .630 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

The Concorde, Intrepid, Vision and LHS rows include cars with either rear drums or rear discs. Those rear-brake descriptions qualify the vehicle package; they do not change this set's front axle position.

Application coverage, subject to the brake and equipment qualifications below: Chrysler Concorde (1993–1997); Dodge Intrepid (1993–1997); Eagle Vision (1995–1997); Chrysler LHS (1994–1997).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

Use PMB Performance's 20-plus years of experience when the fitted brake package is uncertain. A caliper reference and comparison with the removed pad are useful alongside the vehicle's year and model.

Vehicle Applications
