Wilwood Front ProMatrix D576 Pads for Mercury Villager and Nissan Quest (1993–2002)

The D576 inner and outer plates are listed for the front brakes of the 1993–2002 Mercury Villager and Nissan Quest. This ProMatrix set replaces the existing pads at a nominal 0.62-inch thickness. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its component range, with individual parts chosen to match the complete system rather than considered in isolation.

Technical Details

• Manufacturer part number: 150-D0576K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D576
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .62 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.200 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low
• Drawing thickness, inner / outer: .620 / .620 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

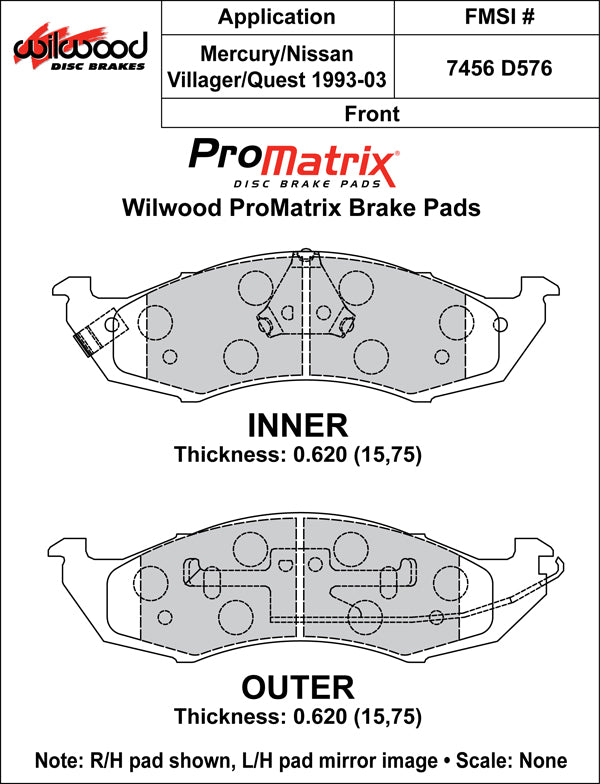

Confirm that the minivan retains the specified original front caliper and matching plate profile. The separate inner and outer shapes shown in the drawing are useful checks when comparing the removed pads before fitting the new set.

Application coverage, subject to the brake and equipment qualifications below: Mercury Villager (1993–2002); Nissan Quest (1993–2002).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.
