Wilwood Front ProMatrix Pads for Camry (1992–2001), RAV4 (1996–2000), Celica (1994–1997) and Corolla/Prizm (1993–1997)

This D562 set uses ProMatrix friction on the front pad profile specified for the listed Toyota and Geo applications. Its 0.69-inch nominal thickness is shared by the inner and outer pads shown in the drawing. Wilwood Engineering's range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to meet the needs of a complete brake system. The company was founded by Bill Wood in 1977 and is based in Camarillo, California, designing and manufacturing disc brake systems for motorsport, street-performance and specialized applications.

Technical Details

• Manufacturer part number: 150-D0562K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D562
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .69 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 3.900 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

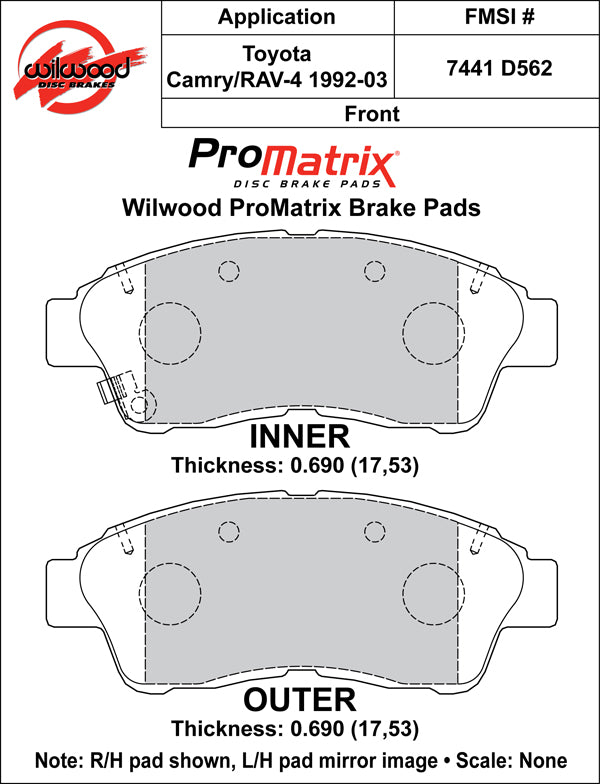

• Drawing thickness, inner / outer: .690 / .690 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

The table includes four-cylinder restrictions, a 14-inch-wheel requirement in certain applications, and steering or drivetrain distinctions. Use the complete Camry, RAV4, Celica, Corolla or Prizm row to establish compatibility rather than relying on a shared platform.

Application coverage, subject to the brake and equipment qualifications below: Toyota Camry (1992–2001); Toyota RAV4 (1996–2000); Toyota Celica (1994–1997); Toyota Corolla (1993–1997); Geo Prizm (1993–1997).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.
