Wilwood Rear ProMatrix Brake Pads for Listed Legend, Oasis, Odyssey, Element, 3.2 TL, 3.5 RL, CR-V, RDX, TL and 3.2 CL Disc-Brake Applications (1991–2012)

The D536 rear pad set is listed for selected Honda, Acura and Isuzu brake packages. A 0.575-inch thickness and separate inner/outer profiles define the mechanical fit, while the ProMatrix compound provides the specified street and track-day friction option. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Those components need to be selected together around the complete brake system's requirements.

Technical Details

• Manufacturer part number: 150-D0536K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D536
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .575 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 1.900 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

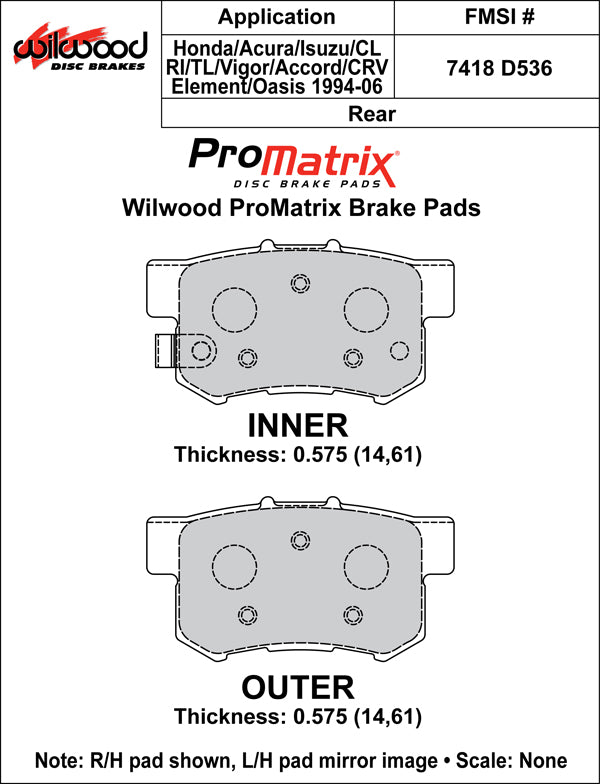

• Drawing thickness, inner / outer: .575 / .575 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Legend, Oasis, Odyssey, Element, CR-V, RDX, TL and the listed 3.2/3.5-litre Acura model names appear in the applications. Transmission and Type-S or other trim qualifications matter, particularly where similar model years use different front/rear brake combinations.

Application coverage, subject to the brake and equipment qualifications below: Acura Legend (1991–1995); Isuzu Oasis (1996–1999); Honda Odyssey (1995–1998); Honda Element (2003–2011); Acura 3.2 TL (1999–2006); Acura 3.5 RL (1996–2004); Honda CR-V (2002–2004); Acura RDX (2007–2012); Acura TL (2007–2008); Acura 3.2 CL (2001–2003).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

With over 20 years of experience, PMB Performance can help compare the pad profile with your brake configuration. Include the vehicle year, brake package and clear caliper details when requesting a fitment check.
