Wilwood Front ProMatrix Pads for LS400 (1990–1992), Camry/SC300 (1992–1995), ES300 (1992–1996) and Celica (1994–1997)

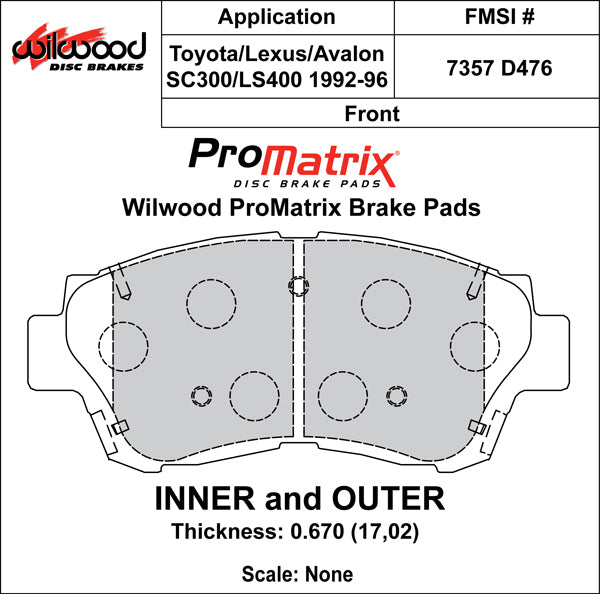

These D476 pads renew the friction components in the listed Toyota and Lexus front calipers. The set uses a 0.67-inch nominal thickness, with the drawing identifying the inner and outer plate profile. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 150-D0476K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D476
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .67 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.100 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Camry and Celica entries include engine and trim restrictions, so the combined Toyota/Lexus model list is not a blanket fitment statement. Check the individual year and option row before selecting this profile for a car with replacement or modified calipers.

Application coverage, subject to the brake and equipment qualifications below: Lexus LS400 (1990–1992); Toyota Camry (1992–1995); Lexus ES300 (1992–1996); Lexus SC300 (1992–1995); Toyota Celica (1994–1997).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.

Vehicle Applications
