Wilwood Front ProMatrix D459 Pads for C3500 (1994–1998), K3500 (1990–1998), K3500 Classic (1999) and Ram 2500 HD (1994–1999)

The D459 set has different inner and outer pad configurations for the listed heavy-truck front brakes. The drawing supplies separate thicknesses, so the page's single nominal value should not be treated as the thickness of every pad in the box. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with each component selected to suit the complete brake system.

Technical Details

• Manufacturer part number: 150-D0459K
• Pad type: ProMatrix replacement brake pad set
• Pad profile: D459
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .78 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 4.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

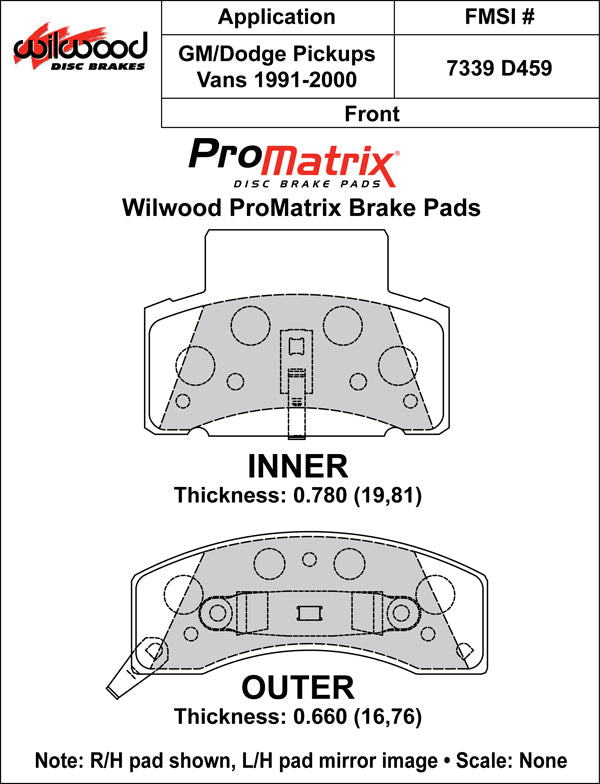

• Drawing thickness, inner / outer: .780 / .660 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Verify the exact Chevrolet/GMC 3500 or Dodge Ram 2500 HD entry and its rear-wheel configuration. The 1999 K3500 Classic designation is distinct from the earlier K3500 range and should be retained when matching the brake hardware.

Application coverage, subject to the brake and equipment qualifications below: Chevrolet K3500 Classic Pickup (1999); Chevrolet C3500 (1994–1998); Chevrolet K3500 Pickup (1990–1998); GMC K3500 Pickup (1990–1998); Dodge Ram 2500 HD (1994–1999).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.

Vehicle Applications
