Wilwood Rear ProMatrix D413 Pads for Camaro/Firebird (1988–1997) and Corvette C4 (1988–1996)

This rear pad set uses the D413 plate for the selected F-body and Corvette C4 applications. ProMatrix friction is supplied at a listed 0.53-inch thickness, preserving the need to identify the original rear disc-brake configuration. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. Its work includes the design and manufacture of disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component choice must suit the complete brake system, including its intended use and mating hardware.

Technical Details

• Manufacturer part number: 150-D0413K
• Pad type: ProMatrix replacement brake pad set

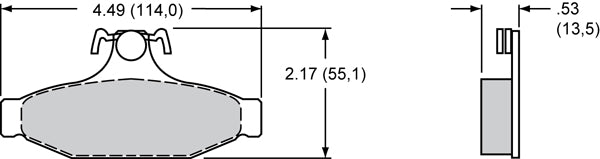

• Pad profile: D413
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .53 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Factory bedded: No
• Published weight: 1.700 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Camaro and Firebird coverage includes specific front-caliper and performance-package combinations, while Corvette rows distinguish standard and heavy-duty front brakes. Those row descriptions identify the vehicle package; this pad set remains a rear-brake component.

Application coverage, subject to the brake and equipment qualifications below: Chevrolet Camaro (1988–1997); Chevrolet Corvette (1988–1996); Pontiac Firebird (1988–1997).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

With over 20 years of experience, PMB Performance can help compare the pad profile with your brake configuration. Include the vehicle year, brake package and clear caliper details when requesting a fitment check.

Vehicle Applications
