Wilwood Front ProMatrix Brake Pads for Dart (1965–1972); Comet, Falcon, Ranchero and Mustang (1965–1967); Fairlane/Voyager (1966–1967); Cougar, Cyclone and Caliente (1967)

These ProMatrix pads use the D11 profile associated with the listed early front disc-brake packages. The replacement set supplies friction material for the existing calipers; it does not convert a drum-brake spindle to disc brakes. Bill Wood founded Wilwood Engineering in 1977. From its base in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Compatibility with the complete brake system governs selection of the individual components.

Technical Details

• Manufacturer part number: 150-D0011K
• Pad type: ProMatrix replacement brake pad set

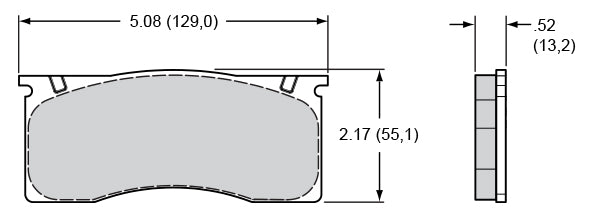

• Pad profile: D11
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .52 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Pad area: 8.27 sq in
• Pad volume: 5.8 cu in
• Factory bedded: No
• Published weight: 2.920 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Applications include selected Dart, Comet, Fairlane, Falcon, Ranchero, Cougar, Cyclone, Voyager, Mustang and Caliente models. Match the full year and disc-brake spindle entry, including the V8-only qualification where present, rather than assuming all versions of those vehicles use D11 pads.

Application coverage, subject to the brake and equipment qualifications below: Dodge Dart (1965–1972); Mercury Comet (1965–1967); Ford Fairlane (1966–1967); Ford Falcon (1965–1967); Ford Ranchero (1965–1967); Mercury Cougar (1967); Mercury Cyclone (1967); Mercury Voyager (1966–1967); Ford Mustang (1965–1967); Mercury Caliente (1967).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

Use PMB Performance's 20-plus years of experience when the fitted brake package is uncertain. A caliper reference and comparison with the removed pad are useful alongside the vehicle's year and model.
