Wilwood Front/Rear ProMatrix D8 Pads for Corvette C2/C3 (1965–1982) and Camaro Z/28 (1968–1969)

This ProMatrix set replaces D8 pads in the listed Corvette C2/C3 and four-wheel-disc Camaro Z/28 brake packages. Front or rear use depends on the specific application and caliper; the set is not a complete vehicle's pad supply. The Wilwood range brings together calipers, brake rotors, master cylinders, valves, fittings and brake lines for complete-system component selection. Wilwood Engineering was founded by Bill Wood in 1977, is based in Camarillo, California, and designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications.

Technical Details

• Manufacturer part number: 150-D0008K
• Pad type: ProMatrix replacement brake pad set

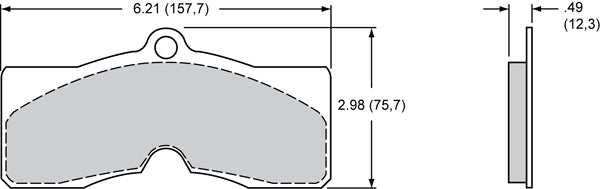

• Pad profile: D8
• Quantity: 4 pads
• Position: Front/Rear
• Nominal thickness (Wilwood specification): .49 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street, autocross and track-day applications
• Friction characteristics: Medium friction; engagement builds with temperature, with a medium wear rate at high temperatures.
• Pad area: 10.29 sq in
• Pad volume: 3.4 cu in
• Factory bedded: No
• Published weight: 3.800 lb
• Wilwood dust rating: Low to Moderate
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Corvette coverage spans the listed 1965–1982 C2/C3 applications, while Camaro coverage is restricted to the 1968–1969 Z/28 four-wheel-disc option. Match the D8 plate and 0.49-inch thickness to the fitted calipers, including any previous brake conversion.

Application coverage, subject to the brake and equipment qualifications below: Chevrolet Corvette (1965–1982); Chevrolet Camaro (1968–1969).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.
