Product details
This GNX-profile set uses Wilwood's CM composite-metallic friction for racing service. The compound is specifically associated with sustained high heat and stainless-steel rotor applications, while the 0.57-inch plate must match the fitted GNX4 or GNX5 caliper. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Each part is selected to match the complete brake system.
Technical Details
- Manufacturer part number: 150-9841K
- Pad type: CM replacement brake pad set
- Pad profile: 9115
- Quantity: 4 pads
- Position: Installation-dependent; confirm the actual caliper application
- Nominal thickness (Wilwood specification): .57 inch
- Compatible rotor material: Steel, Stainless Steel, Iron, Super Alloy, Titanium
- Compound application: Racing only — not for street use

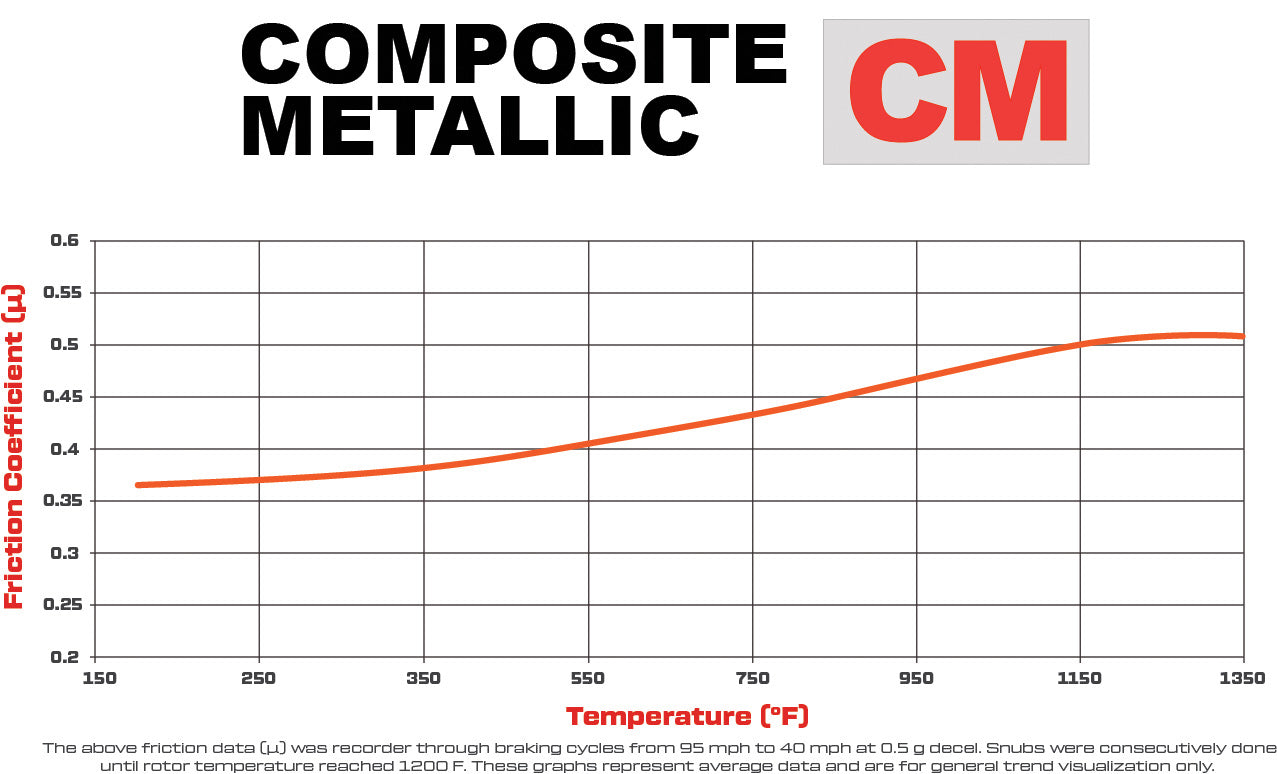

- Friction characteristics: Composite metallic high-friction formulation for stainless steel rotors, with a smooth initial response and low wear during sustained high-heat braking.
- Caliper selection: GNX4 and GNX5 calipers using the 9115 plate
- Pad area: 11.15 sq in
- Pad volume: 4.07 cu in
- Factory bedded: No
- Published weight: 6.800 lb
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Fitment & Compatibility

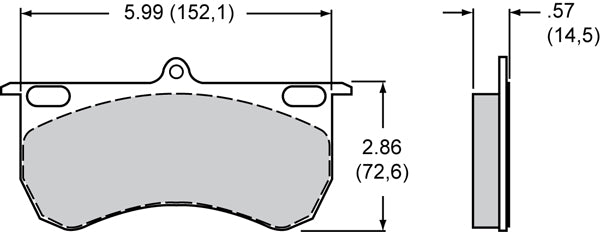

Compare the 5.99-inch-wide plate and central retaining feature with the installed brake. Wilwood identifies CM as racing only; any proposed substitute compound must be selected for the rotor material and operating conditions rather than treated as an automatic replacement.
Racing only - Not for street use
Wilwood pad specifications and compatible-caliper reference
PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.
