Wilwood Rear BP10 Brake Pads for Listed Beetle, Golf/Golf City, Jetta, Quantum, Passat, TT, A4/A4 Quattro, A6/A6 Quattro and S6 Applications (1985–2011)

The D340 backing plate carries the upper retaining spring used by the listed rear disc-brake applications. This BP10 set also appears in Wilwood's CPB caliper range, with the same profile requiring confirmation against the actual brake assembly. A complete brake system depends on compatible component selection. Wilwood Engineering designs and manufactures disc brake systems along with calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized use. Bill Wood founded Wilwood in 1977; the company is based in Camarillo, California.

Technical Details

• Manufacturer part number: 150-9184K
• Pad type: BP10 replacement brake pad set

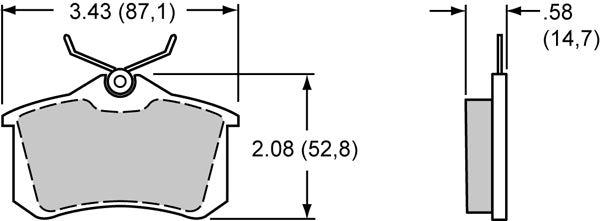

• Pad profile: D340
• Quantity: 4 pads
• Position: Rear
• Nominal thickness (Wilwood specification): .58 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street use, muscle cars, drag racing and light to medium dirt-track braking

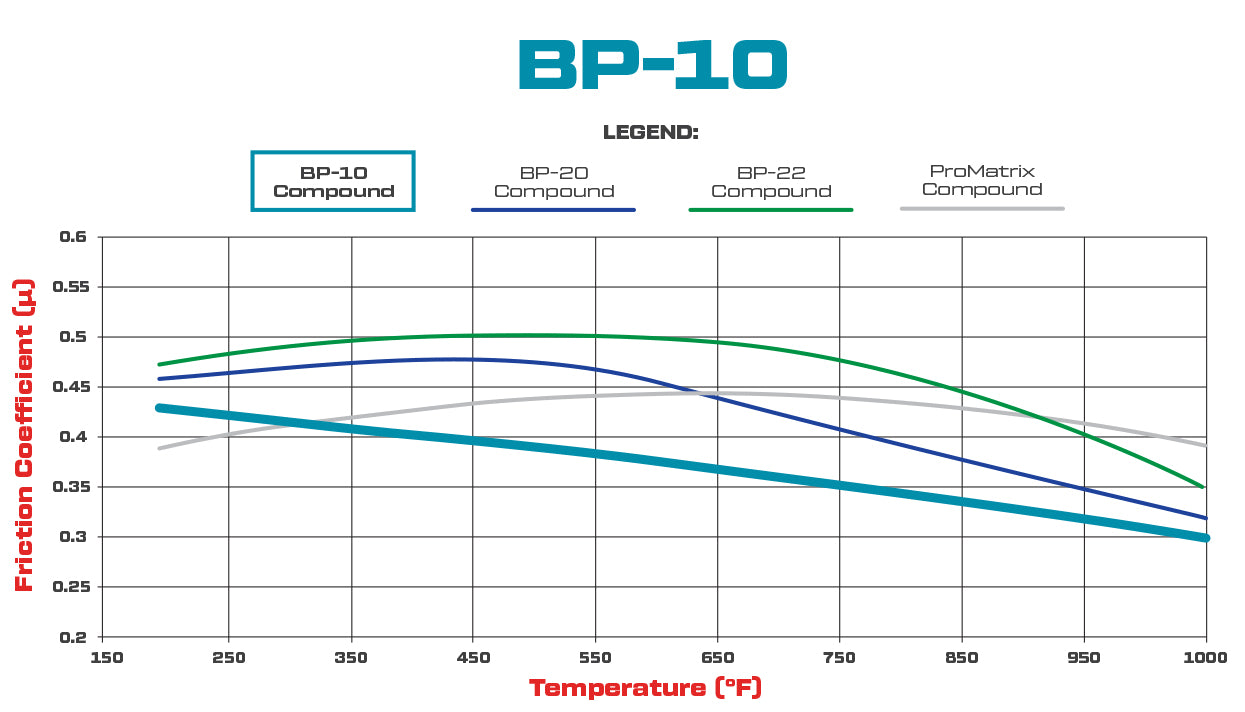

• Friction characteristics: Medium friction with a gradual response, low wear on iron rotors and low to medium wear at low operating temperatures.
• Pad area: 4 sq in
• Pad volume: 1.5 cu in
• Factory bedded: No
• Published weight: 2.100 lb
• Wilwood dust rating: Low
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Volkswagen coverage includes selected Beetle, Golf/Golf City, Jetta, Quantum and Passat models; Audi entries cover TT, A4/A4 Quattro, A6/A6 Quattro and S6. The individual years, engine, VIN and mid-year chassis notes remain essential, especially the 1999.5 Golf IV and Jetta IV production splits.

Application coverage, subject to the brake and equipment qualifications below: Volkswagen Beetle (1999–2005); Volkswagen Golf (1988–1996, 1999–2006); Volkswagen Jetta (1985–1991, 1993–2005, 2007–2011); Volkswagen Quantum (1985–1988); Volkswagen Passat (1991–2002); Audi TT (2000–2006); Audi A4 (1998); Audi A6 Quattro (2002–2004); Volkswagen Golf City (2007–2010); Audi S6 (2002); Audi A6 (2003); Audi A4 Quattro (2004).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.

Vehicle Applications
