Product details
This BP10 set uses the thinner 7812 plate for specified Dynapro and Dynalite installations. Its two raised retaining ears and 0.49-inch thickness must agree with the installed caliper's bridge and pad opening. Wilwood Engineering, founded in 1977 by Bill Wood, designs and manufactures disc brake systems and components in its role as a Camarillo, California-based brake specialist. Its range serves motorsport, street-performance and specialized applications through calipers, brake rotors, master cylinders, valves, fittings and brake lines. Selection of each part must match the complete brake system's requirements.
Technical Details
- Manufacturer part number: 150-9136K
- Pad type: BP10 replacement brake pad set

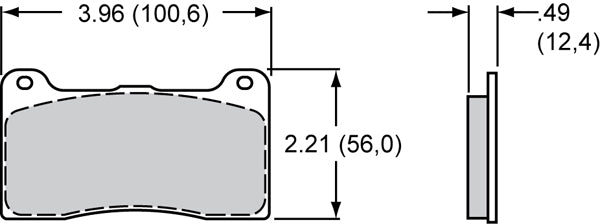

- Pad profile: 7812
- Quantity: 4 pads
- Position: Installation-dependent; confirm the actual caliper application
- Nominal thickness (Wilwood specification): .49 inch
- Compatible rotor material: Steel, Iron
- Compound application: Street use, muscle cars, drag racing and light to medium dirt-track braking
- Friction characteristics: Medium friction with a gradual response, low wear on iron rotors and low to medium wear at low operating temperatures.
- Caliper selection: Listed Dynapro, Dynalite side-inlet, DPHA, XRD and UTV calipers accepting the 7812 plate
- Pad area: 6.36 sq in
- Pad volume: 2.1 cu in
- Factory bedded: No
- Published weight: 2.600 lb
- Wilwood dust rating: Low
- Wilwood noise rating: Low
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Fitment & Compatibility
The exact manufacturer list includes selected Dynapro, DPHA, XRD and UTV caliper versions. Verify the full caliper model rather than extending this fit to every member of those families; the thicker 7816 pad is a separate configuration.
Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference
PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.
