Wilwood BP10 Brake Pads for Narrow Dynalite and Radial Dynapro Calipers — 0.60-Inch Thickness

The 7816 plate combines two upper retaining ears with a 0.60-inch nominal thickness. This BP10 set is intended for the listed radial Dynapro and narrow Dynalite calipers, where both the plate outline and available pad space determine compatibility. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Those components need to be selected together around the complete brake system's requirements.

Technical Details

• Manufacturer part number: 150-8946K
• Pad type: BP10 replacement brake pad set
• Pad profile: 7816
• Quantity: 4 pads
• Position: Installation-dependent; confirm the actual caliper application
• Nominal thickness (Wilwood specification): .60 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street use, muscle cars, drag racing and light to medium dirt-track braking

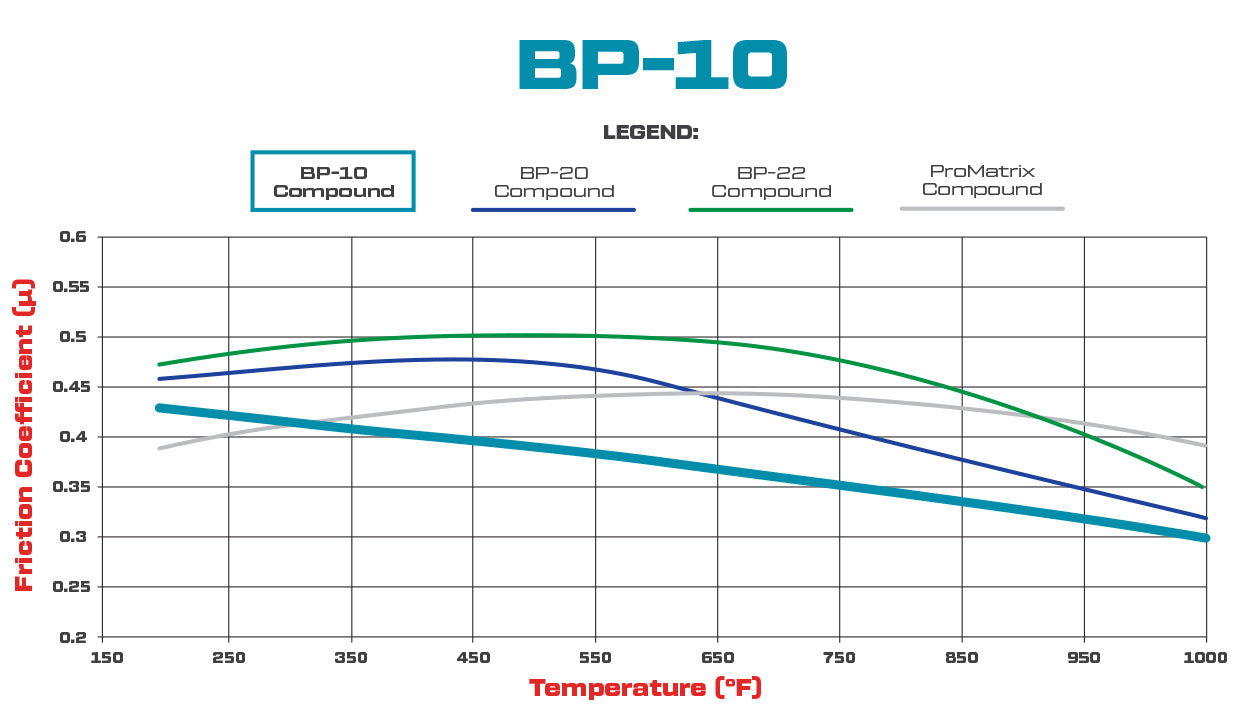

• Friction characteristics: Medium friction with a gradual response, low wear on iron rotors and low to medium wear at low operating temperatures.
• Caliper selection: Listed Narrow Dynalite and Radial Dynapro calipers using the 7816 plate
• Pad area: 6.36 sq in
• Pad volume: 3 cu in
• Factory bedded: No
• Published weight: 2.900 lb
• Wilwood dust rating: Low
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Compare the 3.96-inch width and 2.21-inch height shown in the drawing with the installed pad. Similar-looking 7812 pads are thinner, so a shared caliper name or outline does not establish interchangeability.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

Use PMB Performance's 20-plus years of experience when the fitted brake package is uncertain. A caliper reference and comparison with the removed pad are useful alongside the vehicle's year and model.
