Wilwood Front BP10 D52 Brake Pads for Selected GM and Jeep Applications (1968–2002)

The D52 set serves the front disc brakes of the selected GM and Jeep applications listed below. Inner and outer pads have different plate shapes and thicknesses, which must be matched to the fitted floating caliper before the friction compound is selected. For Wilwood Engineering, component selection forms part of matching a complete brake system to its application. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures disc brake systems and a range of calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.

Technical Details

• Manufacturer part number: 150-8939K
• Pad type: BP10 replacement brake pad set
• Pad profile: D52
• Quantity: 4 pads
• Position: Front
• Nominal thickness (Wilwood specification): .52 / .58 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street use, muscle cars, drag racing and light to medium dirt-track braking
• Friction characteristics: Medium friction with a gradual response, low wear on iron rotors and low to medium wear at low operating temperatures.
• Pad area: 10 sq in
• Pad volume: 3.9 cu in
• Factory bedded: No
• Published weight: 4.300 lb
• Wilwood dust rating: Low
• Wilwood noise rating: Low

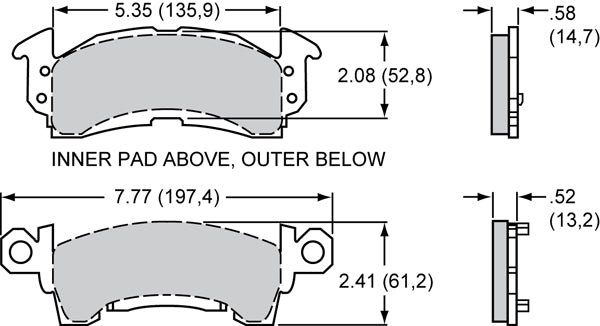

• Drawing thickness, inner / outer: .58 / .52 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

The broad application span includes passenger cars, vans, pickups and SUVs with specific D52 brake packages. Rear drum size, rotor width, two- or four-wheel drive, police equipment and spindle type distinguish individual rows; none of those qualifications can be replaced by a general GM or Jeep year match.

Application coverage, subject to the brake and equipment qualifications below: Chevrolet Impala (1968–1985); Chevrolet K10 Suburban (1971–1986); Chevrolet K20 Suburban (1971–1986); Chevrolet Malibu (1973–1977); Chevrolet Monte Carlo (1970–1977); Chevrolet Nova (1969–1979); Chevrolet P20 Series (1971–1989); Chevrolet Astro (1985–2002); Oldsmobile 442 (1969–1971); Oldsmobile 98 (1969–1984); Oldsmobile Custom Cruiser (1971–1992); Oldsmobile Cutlass (1969–1977); Oldsmobile Cutlass Supreme (1969–1977); Oldsmobile Delta 88 (1969–1985); Oldsmobile F85 (1969–1972); Chevrolet Bel Air (1968–1975); Chevrolet Biscayne (1968–1972); Chevrolet Brookwood (1970–1972); Chevrolet Camaro (1969–1981); Chevrolet Caprice (1968–1996); Chevrolet Chevelle (1969–1973); Chevrolet El Camino (1969–1977); Chevrolet Estate (1970); Oldsmobile Omega (1973–1979); Oldsmobile Toronado (1969–1978); Pontiac Bonneville (1969–1981, 1987–1988); Pontiac Catalina (1969–1981); Pontiac Firebird (1969–1981); Pontiac Grand Prix (1969–1977); Pontiac LeMans (1969–1977); Pontiac Phoenix (1977–1979); Pontiac Ventura (1971–1977); GMC C1500 Pickup (1971–1974, 1979–1986); GMC C1500 Suburban (1979–1986); GMC C2500 Pickup (1979–1986); GMC C2500 Suburban (1979–1986); GMC G3500 Van (1971–1974, 1979–1984); GMC Jimmy (1971–1991); GMC K1500 (1979–1986); GMC K1500 Suburban (1979–1986); GMC K2500 Pickup (1971–1986); GMC K2500 Suburban (1971–1986); GMC P25 Series (1971–1989); Oldsmobile Vista Cruiser (1969–1975); Chevrolet G10 (1975–1995); Chevrolet G20 (1985–1995); GMC Safari Van (1985–2002); Chevrolet K20 Pickup (1971–1974); Chevrolet Kingswood (1970–1972); Chevrolet P30 Series (1971–1975); Chevrolet Townsman (1970–1972); Buick Estate Wagon (1971–1991); Buick LeSabre (1970–1990); GMC K15/K1500 Pickup (1971–1974); GMC K15/K1500 Suburban (1971–1974); GMC P15 Series (1971–1980); GMC P35 Series (1971–1975); GMC Sprint (1971–1977); Jeep Cherokee (1974–1983); Jeep J10 Truck (1974–1983); Jeep J20 Truck (1974–1983); Jeep Wagoneer (1974–1983); Buick Skylark (1969–1972, 1975–1979); Cadillac Calais (1968–1976); Cadillac DeVille (1968–1984); Cadillac Eldorado (1969–1978); Cadillac Fleetwood (1968–1996); Chevrolet K5 Blazer (1975–1986); Chevrolet C10 (1975–1986); Chevrolet C10 Suburban (1971–1986); Chevrolet C20 Pickup (1971–1986); Chevrolet C20 Suburban (1971–1986); Chevrolet C30 Pickup (1971–1978); GMC R1500 Suburban (1987–1991); GMC V1500 Suburban (1987–1991); Buick Electra (1970–1984); Buick Park Avenue (1978–1984); Buick GS 350 (1969); Buick GS 400 (1969); Buick Special (1969); Buick Sportwagon (1969–1972); Chevrolet V1500 Suburban (1989–1991); Pontiac Grandville (1971–1974); Pontiac GTO (1969–1973); Chevrolet V10 Suburban (1987–1988); Pontiac Parisienne (1979–1986); Buick Apollo (1973–1975); Buick Century (1973–1977); GMC C15 (1975–1978); GMC C15 Suburban (1975–1978); Oldsmobile 88 (1992–1993); GMC C15/C1500 Suburban (1971–1974); GMC C25/C2500 Suburban (1971–1974); GMC C3500 Pickup (1971–1978); GMC G15 Van (1973–1974); GMC G2500 Van (1973–1974); Pontiac Acadian (1969–1971); Cadillac Series 60 (1968); Cadillac Series 75 (1968); Pontiac Executive (1969–1970); Buick Roadmaster (1991–1996); Chevrolet Blazer (1971–1974, 1987–1991); Buick Riviera (1970–1978); Jeep Grand Wagoneer (1984–1991); Cadillac Seville (1976–1979); Pontiac Beaumont (1969); Buick Regal (1973–1977); Chevrolet C10 Pickup (1971–1974); GMC K15 Suburban (1975–1978); GMC K15 (1975–1978); Pontiac Grand Am (1973–1975); Pontiac Tempest (1969–1970); Chevrolet R10 Pickup (1987); Chevrolet R10 Suburban (1987); GMC R1500 Pickup (1987); GMC R2500 Pickup (1987); GMC R2500 Suburban (1987); GMC V1500 Pickup (1987); GMC V2500 Pickup (1987); GMC V2500 Suburban (1987); Chevrolet G10 Van (1973–1974); Chevrolet G20 Van (1973–1974); Chevrolet G30 Van (1971–1974); Chevrolet K10 Pickup (1971–1974); Buick Centurion (1971–1973); Chevrolet R1500 Suburban (1989–1991); Buick GS (1970–1972); Buick GS 455 (1970–1972); Chevrolet R20 Pickup (1987); Chevrolet R20 Suburban (1987); Chevrolet V10 Pickup (1987); Chevrolet V20 Pickup (1987); Chevrolet V20 Suburban (1987); Buick Wildcat (1970); Chevrolet K10 (1975–1986).

Use the fitment table below to confirm the exact year, model, trim and brake configuration. Compare the pad outline and installed caliper where a vehicle has been modified.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

For help checking this application, contact PMB Performance with the vehicle and installed brake details. Our team draws on over 20 years of experience with parts and brake fitment.

Vehicle Applications
