Wilwood BP10 D154 Brake Pads for GM Metric Floating Calipers — Four-Pad Set

These D154 pads replace the friction components in compatible GM Metric and Wilwood D154 floating calipers. The set contains distinct inner and outer backing plates, so matching only the friction face can miss a retention difference. Bill Wood established Wilwood Engineering in 1977, and the company is based in Camarillo, California. It designs and manufactures disc brake systems, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized use. The individual parts must be selected as compatible elements of the complete brake system.

Technical Details

• Manufacturer part number: 150-8936K
• Pad type: BP10 replacement brake pad set
• Pad profile: D154
• Quantity: 4 pads
• Position: Installation-dependent; confirm the actual caliper application
• Nominal thickness (Wilwood specification): .52 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street use, muscle cars, drag racing and light to medium dirt-track braking
• Friction characteristics: Medium friction with a gradual response, low wear on iron rotors and low to medium wear at low operating temperatures.
• Caliper selection: Listed D154 and GM Metric floating calipers
• Pad area: 8.7 sq in
• Pad volume: 2.9 cu in
• Factory bedded: No
• Published weight: 3.500 lb
• Wilwood dust rating: Low
• Wilwood noise rating: Low

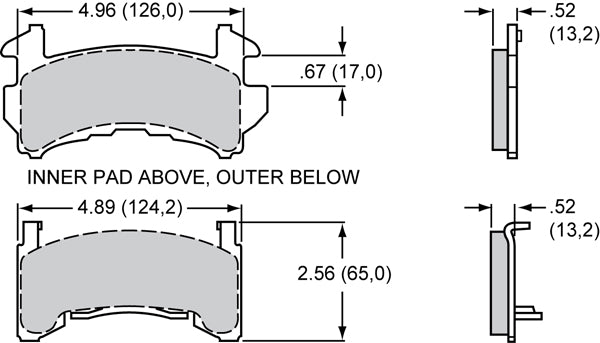

• Drawing thickness, inner / outer: .52 / .52 inch

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Wilwood lists D154 single- and dual-piston floating calipers and GM Metric variants for this profile. Confirm the fitted caliper, both backing-plate shapes and the specified 0.52-inch thickness; this hardware-based application does not establish a universal vehicle or axle fit.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance has more than 20 years of experience helping customers identify the correct brake components. For a modified system, provide the caliper model and pad measurements alongside the vehicle details.
