Wilwood BP10 Brake Pad Set for Superlite 4/6 Calipers — 0.80-Inch Thickness

This BP10 set uses the 7420 plate for compatible Superlite four- and six-piston calipers. Its 0.80-inch thickness distinguishes it from thinner Superlite pads, making the caliper's available pad space an essential ordering check. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with each component selected to suit the complete brake system.

Technical Details

• Manufacturer part number: 150-8854K
• Pad type: BP10 replacement brake pad set

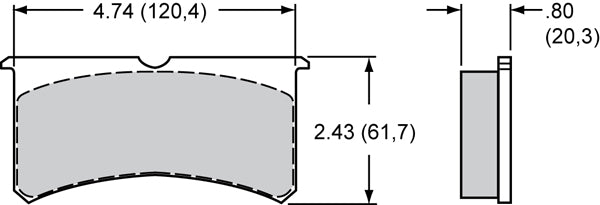

• Pad profile: 7420
• Quantity: 4 pads
• Position: Installation-dependent; confirm the actual caliper application
• Nominal thickness (Wilwood specification): .80 inch
• Compatible rotor material: Steel, Iron
• Compound application: Street use, muscle cars, drag racing and light to medium dirt-track braking
• Friction characteristics: Medium friction with a gradual response, low wear on iron rotors and low to medium wear at low operating temperatures.
• Caliper selection: Listed Superlite 4/6 calipers accepting the 7420 plate and 0.80-inch pad
• Pad area: 8.2 sq in
• Pad volume: 4.9 cu in
• Factory bedded: No
• Published weight: 4.500 lb
• Wilwood dust rating: Low
• Wilwood noise rating: Low

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Fitment & Compatibility

Match the actual Superlite model, pad opening and retention arrangement to the 7420 outline. The caliper family covers multiple installations, so the vehicle badge alone does not establish front or rear fitment.

Wilwood pad specifications and compatible-caliper reference · Wilwood LeafMark brake-pad technical reference

PMB Performance brings over 20 years of brake and parts experience to fitment checks. Send your vehicle details and caliper identification if you need help confirming this pad selection.
