Wilwood Shimmed SC1/SC2/SC3 Caliper Pads, Four-Piece Set

Bill Wood started Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street vehicles and specialized installations. Four replacement pads for the specified Wilwood caliper configuration with shims. Each part must be selected to work with the complete brake system and its requirements.

This part is selected by its SC-series or other specifically listed mechanical/parking-caliper interface. The current page identifies CM material; Wilwood’s parts-search text calls it SM. These inconsistent material labels and .27/.120-inch thickness descriptions require confirmation before making a substitution.

Technical Details

• Manufacturer part number: 150-7646K
• Pad/shoe profile: 6407
• Package quantity: 4 individual pads
• Published material labels: CM on the exact-pad page; SM in Wilwood’s ordering description. Confirm the supplied friction material and intended duty.

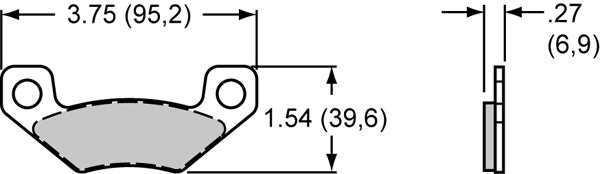

• Published thickness: 0.27 inch on the product page and drawing; 0.120 inch in the ordering description. Wilwood must confirm the supplied dimension.
• Catalog pad area: 1.7 square inches
• Catalog pad volume: 0.26 cubic inches
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
• Shims: Included, as identified by Wilwood’s parts-search description.
• Listed Wilwood calipers: Electronic Parking Brake; HE1 Hydra-Electric Caliper; HM Hydra-Mechanical; MC2 / MC3; MC4 Mechanical; MC5 Mechanical; SC1 / SC2 / SC3

Fitment & Compatibility

This shim-equipped SC1/SC2/SC3 selection is separately identified in Wilwood’s official parts search. Overall pad thickness is .27 inch on the drawing and exact page; the search uses .120 inch. Confirm the required assembly and friction material, described as SM there and CM on the pad page.

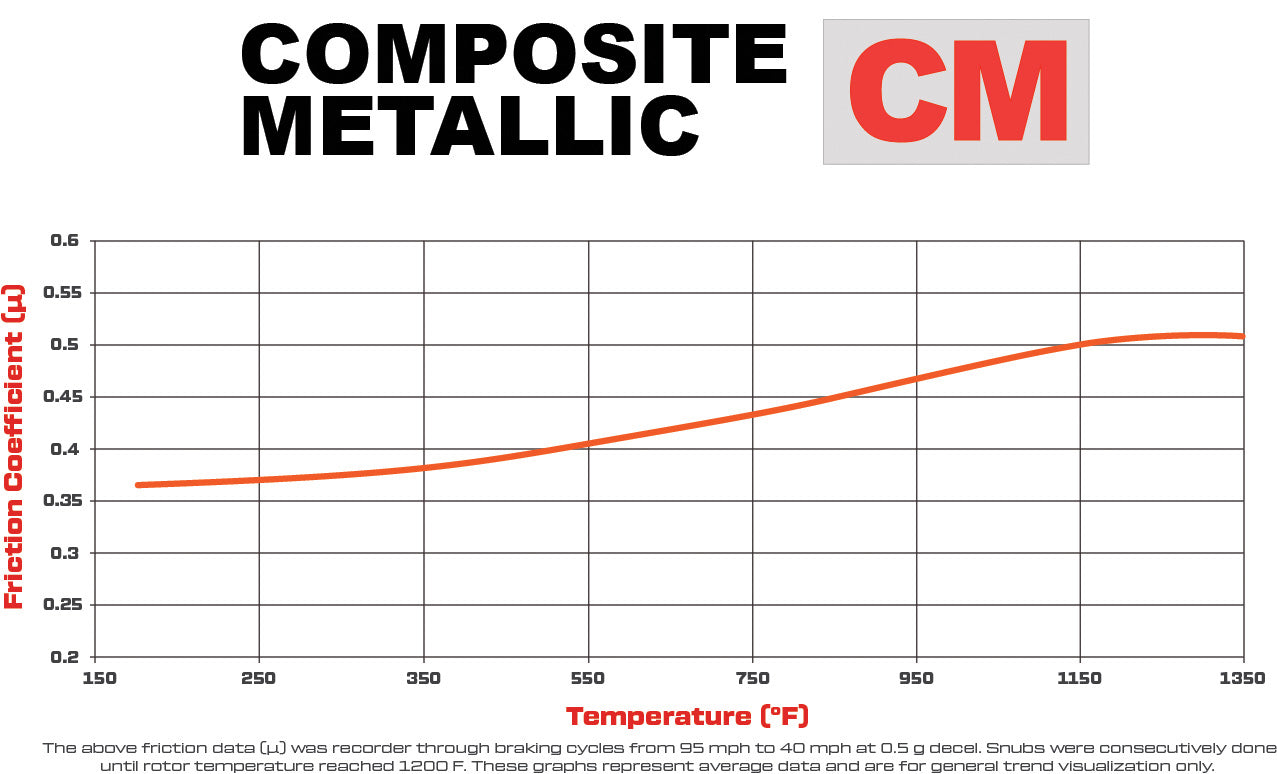

Use in a parking mechanism must follow that mechanism’s instructions. The general CM compound chart does not establish dynamic service-brake or street approval for a mechanical parking-caliper installation.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
