Wilwood Rear Parking Brake Shoes, Four-Piece S745 Set

The manufacturer, Wilwood Engineering, began under Bill Wood in 1977 and operates from Camarillo, California. It designs and manufactures disc brake systems and components: calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street and specialized vehicles. The S745 parking brake replacement supplies 4 parking-brake shoes. Select the individual parts around the requirements of the entire braking system.

These four curved shoes service the parking-brake friction surface. They are separate from the service-brake disc pads and must match the drum-in-hat parking-brake mechanism. Wilwood does not specify a named compound on the exact shoe page, so no disc-pad compound or temperature rating is assigned here.

Technical Details

• Manufacturer part number: 150-6244K
• Pad/shoe profile: S745
• Package quantity: 4 parking-brake shoes

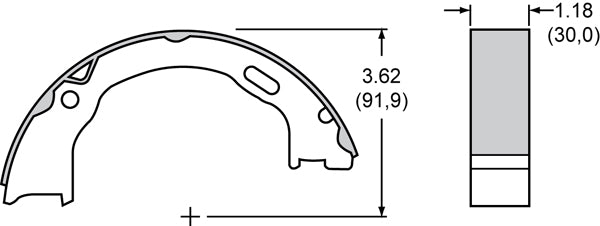

• Manufacturer shoe drawing: 3.62-inch overall height and 1.18-inch width; compare the complete curved profile and anchor features.

Fitment & Compatibility

Use these shoes only with a parking-brake assembly specifying Wilwood S745. Match the curved lining, anchor arrangement and drum-in-hat mechanism. A vehicle model or rear rotor diameter alone does not establish compatibility.

The supplied outline drawing identifies the shoe shape. The second image is Wilwood’s “To Be Determined” chart placeholder and provides no verified friction-versus-temperature data.

Manufacturer Reference

Wilwood parking-brake shoe identification

With over 20 years of experience, PMB Performance can help compare the shoe profile and parking-brake assembly before you order.
