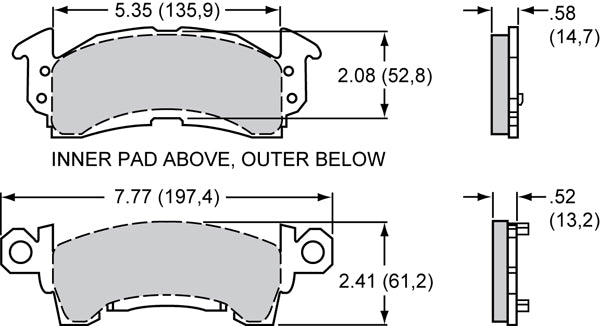

Wilwood GM D52 brake pad outline with face and thickness dimensions

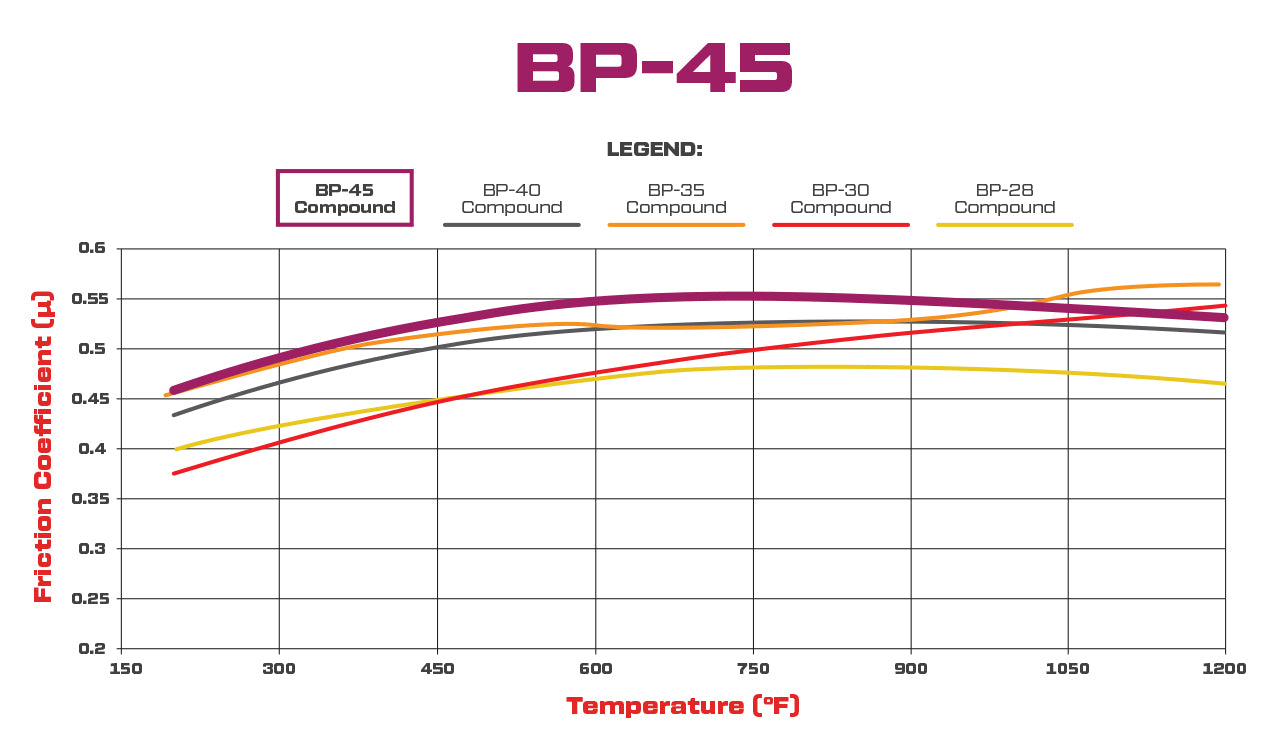

Wilwood BP-45 brake-pad friction coefficient versus temperature comparison chart
Wilwood GM D52 brake pad outline with face and thickness dimensions
Wilwood BP-45 brake-pad friction coefficient versus temperature comparison chart

Wilwood Front BP-45 Race Pads, Matched GM D52 Inner/Outer Profiles

SKU: 150-45-D52K

$208.14 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Founded in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its calipers, rotors, master cylinders, valves, fittings and lines serve motorsport, street and specialized applications with different operating requirements. BP-45 brake pads in the .52 / .58-inch GM D52 configuration supply four replacement pads. The requirements of the complete brake system govern the choice of individual components.

BP-45 falls between BP-30 and BP-40. It has more cold response than BP-30 and builds friction smoothly as heat comes up, without the aggressive first bite Wilwood describes for BP-40. Pick it for iron or steel rotors when you want an even pedal from the first lap to the last. Compare BP-35 if pad life over a long weekend matters more.

Technical Details

  • Manufacturer part number: 150-45-D52K
  • Pad/shoe profile: D52
  • Listed Wilwood calipers: GM D52 Dual Piston; D52-R Single Piston Floater; GM Single Piston
  • Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
  • Catalog pad volume: 3.9 cubic inches
  • Catalog pad area: 10 square inches
  • Catalog thickness: .52 / .58 inch (inner/outer pad forms differ)
  • Compound: BP-45
  • Package quantity: 4 individual pads

BP-45 combines high friction with useful cold response and a smooth increase in friction as rotor temperature rises. Wilwood lists it for racing applications with iron or steel rotors. Choose it around the car’s braking load and balance; a matching production-car pad shape does not make this a general street replacement.

Fitment & Compatibility

The fitment table below spans GM passenger cars, trucks and vans plus selected Jeep applications. Use the axle whose pad column explicitly reads D52, and retain every rotor-width, spindle, drive-layout and option restriction. D154 rear entries in the same rows do not turn this into a rear D154 pad set.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

PMB Performance brings over 20 years of parts and fitment experience. Contact our team with the caliper details and rotor specification to confirm the right pad.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Vehicle Applications

Years Make Model Submodel Model option Front pad type Rear pad type OE spindle type OE rear type Front brakes Rear brakes
1971-1976 Chevrolet Impala Sedan & Wagon D52 Disc Disc
1971-1986 Chevrolet K10 Suburban 4 x 4 D52 Disc Disc
1971-1978 Chevrolet K20 Suburban 4 x 4 D52 Disc Disc
1973-1977 Chevrolet Malibu Disc Brake Spindle D52 Disc Disc
1970-1977 Chevrolet Monte Carlo Disc Brake Spindle D52 Disc Disc
1969-1979 Chevrolet Nova Disc Brake Spindle D52 Disc Disc
1971-1978 Chevrolet P20 Series 4 x 2 D52 Disc Disc
1985-2002 Chevrolet Astro 4 x 2 Only, Drum Rear Brake D52 Disc Disc
1969-1971 Oldsmobile 442 Disc Brake Spindle D52 Disc Disc
1971-1977 Oldsmobile 98 All D52 Disc Disc
1971-1976 Oldsmobile Custom Cruiser All D52 Disc Disc
1969-1977 Oldsmobile Cutlass Disc Brake Spindle D52 Disc Disc
1969-1973, 1977 Oldsmobile Cutlass Supreme Disc Brake Spindle D52 Disc Disc
1971-1976 Oldsmobile Delta 88 All D52 Disc Disc
1969-1972 Oldsmobile F85 Disc Brake Spindle D52 Disc Disc
1979-1986 Chevrolet K20 Suburban 4 x 4 w/ 11" Rear Brakes D52 Disc Disc
1979-1989 Chevrolet P20 Series w/ 11" Rear Drum Brakes D52 Disc Disc
1969-1970 Chevrolet Bel Air Disc Brake Spindle D52 Disc Disc
1969-1970 Chevrolet Biscayne Disc Brake Spindle D52 Disc Disc
1970 Chevrolet Brookwood Disc Brake Spindle D52 Disc Disc
1969-1981 Chevrolet Camaro Disc Brake Spindle D52 Disc Disc
1969-1970 Chevrolet Caprice Disc Brake Spindle D52 Disc Disc
1969-1973 Chevrolet Chevelle Disc Brake Spindle D52 Disc Disc
1969-1972 Chevrolet El Camino Disc Brake Spindle D52 Disc Disc
1970 Chevrolet Estate Disc Brake Spindle D52 Disc Disc
1973-1979 Oldsmobile Omega Disc Brake Spindle D52 Disc Disc
1970-1978 Oldsmobile Toronado All D52 Disc Disc
1977-1978, 1980-1981 Pontiac Bonneville w/ 12" Rotor D52 Disc Disc
1977-1981 Pontiac Bonneville With OE 11" Rotor Spindles D52 Disc Disc
1977-1981 Pontiac Catalina w/ 12" Rotor D52 Disc Disc
1977-1981 Pontiac Catalina With OE 11" Rotor Spindles D52 Disc Disc
1969-1981 Pontiac Firebird Disc Brake Spindle D52 Disc Disc
1969-1977 Pontiac Grand Prix Disc Brake Spindle D52 Disc Disc
1969-1977 Pontiac LeMans Disc Brake Spindle D52 Disc Disc
1977-1979 Pontiac Phoenix Disc Brake Spindle D52 Disc Disc
1971-1977 Pontiac Ventura Disc Brake Spindle D52 Disc Disc
1981-1986 GMC C1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor D52 Disc Disc
1981-1986 GMC C1500 Suburban 4 x 2 w/ 1.00" Wide Front Rotor D52 Disc Disc
1981-1986 GMC C1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor D52 Disc Disc
1979-1986 GMC C2500 Pickup 4 x 2 w/ 11" Rear Drum Brakes D52 Disc Disc
1979-1986 GMC C2500 Suburban 4 x 2 w/ 11" Rear Drum Brakes D52 Disc Disc
1979-1984 GMC G3500 Van w/ 11" Rear Drum Brakes D52 Disc Disc
1971-1991 GMC Jimmy 4 x 4 D52 Disc Disc
1979-1986 GMC K1500 4 x 4 D52 Disc Disc
1980-1986 GMC K1500 Suburban 4 x 4 D52 Disc Disc
1979-1986 GMC K2500 Pickup 4 x 4 w/ 11" Rear Brakes D52 Disc Disc
1979-1986 GMC K2500 Suburban 4 x 4 w/ 11" Rear Brakes D52 Disc Disc
1979-1989 GMC P25 Series w/ 11" Rear Drum Brakes D52 Disc Disc
1969-1975 Oldsmobile Vista Cruiser Disc Brake Spindle D52 Disc Disc
1994-1996 Chevrolet Caprice Sedan Except Taxi Option 9C6 & Police D52 Disc Disc
1994-1995 Chevrolet Caprice SW, Except Public Service Vehicle D52 Disc Disc
1975-1995 Chevrolet G10 Sportvan Sportvan D52 Disc Disc
1975-1995 Chevrolet G10 Beauville Beauville D52 Disc Disc
1975-1995 Chevrolet G10 Chevy Van Chevy Van D52 Disc Disc
1985-1995 Chevrolet G20 Beauville Beauville D52 Disc Disc
1985-1995 Chevrolet G20 Chevy Van Chevy Van D52 Disc Disc
1985-1995 Chevrolet G20 Sportvan Sportvan D52 Disc Disc
1969-1970 Oldsmobile 98 Disc Brake Spindle D52 Disc Disc
1974-1976 Oldsmobile Cutlass Supreme All D52 Disc Disc
1978-1984 Oldsmobile 98 w/ 12" Rotor D52 Disc Disc
1977-1985 Oldsmobile Custom Cruiser w/ 12" Rotor D52 Disc Disc
1977-1985 Oldsmobile Custom Cruiser With OE 11" Rotor Spindles D52 Disc Disc
1978-1985 Oldsmobile Delta 88 Sedan & SW, w/ 12" Rotor D52 Disc Disc
1985-2002 GMC Safari Van 2 Wheel Drive Only D52 Disc Disc
1971-1974 Chevrolet K20 Pickup 4 x 4 D52 Disc Disc
1971-1972 Chevrolet Kingswood All D52 Disc Disc
1971-1973 Chevrolet P30 Series All D52 Disc Disc
1971-1972 Chevrolet Townsman All D52 Disc Disc
1984-1991 Buick Estate Wagon Estate Wagon w/ 12" Rotor D52 Disc Disc
1984-1985 Buick Estate Wagon Estate Wagon With OE 11" Rotor Spindles D52 Disc Disc
1977, 1979-1985 Buick LeSabre w/ 12" Rotor D52 Disc Disc
1977-1985 Buick LeSabre With OE 11" Rotor Spindles D52 Disc Disc
1971-1974 GMC G3500 Van All D52 Disc Disc
1971-1982 GMC Jimmy 4 x 2 Disc Brake Spindle (OE) D52 Disc Disc
1971-1974 GMC K15/K1500 Pickup 4 x 4 D52 Disc Disc
1971-1974 GMC K15/K1500 Suburban 4 x 4 D52 Disc Disc
1971-1978 GMC K2500 Pickup 4 x 4 D52 Disc Disc
1971-1978 GMC K2500 Suburban 4 x 4 D52 Disc Disc
1973-1980 GMC P15 Series All D52 Disc Disc
1971-1978 GMC P25 Series 4 x 2 D52 Disc Disc
1974-1975 GMC P35 Series w/ 13 x 2.50" Rear Drum Brakes D52 Disc Disc
1973-1977 GMC Sprint All D52 Disc Disc
1974-1976 Jeep Cherokee Disc Brake Spindle D52 Disc Disc
1974-1976 Jeep J10 Truck Disc Brake Spindle D52 Disc Disc
1974-1976 Jeep J20 Truck Disc Brake Spindle D52 Disc Disc
1974-1976 Jeep Wagoneer Disc Brake Spindle D52 Disc Disc
1969-1972, 1975-1979 Buick Skylark Disc Brake Spindle D52 Disc Disc
1969-1976 Cadillac Calais All D52 Disc Disc
1969-1976 Cadillac DeVille All D52 Disc Disc
1969-1978 Cadillac Eldorado All D52 Disc Disc
1969-1976 Cadillac Fleetwood All D52 Disc Disc
1971-1975 Chevrolet Bel Air Sedan & Wagon D52 Disc Disc
1975-1980 Chevrolet K5 Blazer 4 x 2, OE Disc Brake Spindle D52 Disc Disc
1975-1986 Chevrolet K5 Blazer 4 x 4 D52 Disc Disc
1975-1980 Chevrolet C10 Disc Brake Spindle (OE) D52 Disc Disc
1971-1980 Chevrolet C10 Suburban Disc Brake Spindle (OE) D52 Disc Disc
1971-1978 Chevrolet C20 Pickup 4 x 2 D52 Disc Disc
1971-1978 Chevrolet C20 Suburban 4 x 2 D52 Disc Disc
1973-1978 Chevrolet C30 Pickup 4 x 2 w/ 13 x 2.50" Rear Drum Brakes D52 Disc Disc
1971-1976 Chevrolet Caprice Sedan & Wagon D52 Disc Disc
1973-1977 Chevrolet El Camino All D52 Disc Disc
1988-1991 GMC R1500 Suburban 4 x 2 D52 Disc Disc
1987-1991 GMC V1500 Suburban 4 x 4 D52 Disc Disc
1978-1984 Buick Electra All D52 Disc Disc
1977-1983 Buick Estate Wagon w/ 12" Rotor D52 Disc Disc
1977-1983 Buick Estate Wagon With OE 11" Rotor Spindles D52 Disc Disc
1980-1984 Buick Park Avenue Park Avenue w/ 12" Rotor D52 Disc Disc
1979-1980 GMC C1500 Suburban Disc Brake Spindle (OE) D52 Disc Disc
1981-1986 Chevrolet C10 Suburban With 1.00" Wide Front Rotor D52 Disc Disc
1981-1986 Chevrolet C10 Suburban With 1.25" Wide Front Rotor D52 Disc Disc
1979-1986 Chevrolet C20 Pickup 4 x 2 w/ 11" Rear Drum Brakes D52 Disc Disc
1979-1986 Chevrolet C20 Suburban 4 x 2 w/ 11" Rear Drum Brakes D52 Disc Disc
1977-1990 Chevrolet Caprice w/ 12" Rotor D52 Disc Disc
1979-1990 Chevrolet Caprice With OE 11" Rotor Spindles D52 Disc Disc
1983 Chevrolet G10 Base Base D52 Disc Disc
1983-1984, 1986-1987 Chevrolet G10 Bonaventure Bonaventure D52 Disc Disc
1977-1985 Chevrolet Impala w/ 12" Rotor D52 Disc Disc
1977-1985 Chevrolet Impala With OE 11" Rotor Spindles D52 Disc Disc
1969 Buick GS 350 Disc Brake Spindle D52 Disc Disc
1969 Buick GS 400 Disc Brake Spindle D52 Disc Disc
1969 Buick Special Disc Brake Spindle D52 Disc Disc
1969-1972 Buick Sportwagon Disc Brake Spindle D52 Disc Disc
1981-1986 GMC C1500 Pickup 4 x 2 w/ 1.00" Wide Front Rotor D52 Disc Disc
1969-1970 Chevrolet Impala Disc Brake Spindle D52 Disc Disc
1970 Chevrolet Kingswood Disc Brake Spindle D52 Disc Disc
1970 Chevrolet Townsman Disc Brake Spindle D52 Disc Disc
1989-1991 Chevrolet V1500 Suburban 4 x 4 D52 Disc Disc
1971-1976 Pontiac Bonneville Sedan & Wagon D52 Disc Disc
1971-1976 Pontiac Catalina Sedan & Wagon D52 Disc Disc
1971-1974 Pontiac Grandville Sedan & Wagon D52 Disc Disc
1969-1973 Pontiac GTO Disc Brake Spindle D52 Disc Disc
1969-1970 Oldsmobile Delta 88 Disc Brake Spindle D52 Disc Disc
1971-1974, 1979-1980 GMC C1500 Pickup Disc Brake Spindle (OE) D52 Disc Disc
1979 GMC K1500 Suburban 4 x 4 D52 Disc Disc
1986-1992 Oldsmobile Custom Cruiser SW w/ 12" Rotor D52 Disc Disc
1986-1990 Buick LeSabre SW Only D52 Disc Disc
1986 Cadillac Fleetwood Brougham Brougham, RWD, Armored Option D52 Disc Disc
1985-1986 Cadillac Fleetwood Brougham Brougham, RWD, w/ 12" Rotor D52 Disc Disc
1981-1986 Chevrolet C10 With 1.00" Wide Front Rotor D52 Disc Disc
1981-1986 Chevrolet C10 With 1.25" Wide Front Rotor D52 Disc Disc
1977-1983 Jeep Cherokee All D52 Disc Disc
1977-1983 Jeep J10 Truck All D52 Disc Disc
1977-1983 Jeep J20 Truck All D52 Disc Disc
1977-1983 Jeep Wagoneer All D52 Disc Disc
1979 Buick Park Avenue Park Avenue w/ 12" Rotor, Disc Brake Rear D52 D154 Disc Disc Disc Disc
1978-1979 Buick Park Avenue Park Avenue w/ 12" Rotor, Drum Brake Rear D52 Disc Disc
1977-1985 Oldsmobile Delta 88 With OE 11" Rotor Spindles D52 Disc Disc
1993 Chevrolet Caprice All, Except Taxi Option 9C6 & Police D52 Disc Disc
1987-1989 Cadillac Fleetwood Brougham, RWD, Armored Option D52 Disc Disc
1987-1988 Chevrolet V10 Suburban 4 x 4 D52 Disc Disc
1979-1986 Pontiac Parisienne w/ 12" Rotor D52 Disc Disc
1974-1975 Chevrolet P30 Series w/ 13 x 2.50" Rear Drum Brakes D52 Disc Disc
1973-1975 Buick Apollo Disc Brake Spindle D52 Disc Disc
1973-1977 Buick Century Disc Brake Spindle D52 Disc Disc
1969 Oldsmobile Toronado Disc Brake Spindle D52 Disc Disc
1975-1978 GMC C15 Disc Brake Spindle (OE) D52 Disc Disc
1975-1978 GMC C15 Suburban Disc Brake Spindle (OE) D52 Disc Disc
1992-1993 Oldsmobile 88 All D52 Disc Disc
1971-1974 GMC C15/C1500 Suburban Disc Brake Spindle (OE) D52 Disc Disc
1971-1974 GMC C25/C2500 Suburban 4 x 2 D52 Disc Disc
1973-1978 GMC C3500 Pickup 4 x 2 w/ 13 x 2.50" Rear Drum Brakes D52 Disc Disc
1973-1974 GMC G15 Van All D52 Disc Disc
1973-1974 GMC G2500 Van All D52 Disc Disc
1971-1973 GMC P35 Series All D52 Disc Disc
1969-1971 Pontiac Acadian Disc Brake Spindle D52 Disc Disc
1968 Cadillac Calais Disc Brake Spindle D52 Disc Disc
1968 Cadillac DeVille Disc Brake Spindle D52 Disc Disc
1968 Cadillac Fleetwood Base Disc Brake Spindle D52 Disc Disc
1968 Cadillac Series 60 60 Special Disc Brake Spindle D52 Disc Disc
1968 Cadillac Series 75 75 Disc Brake Spindle D52 Disc Disc
1968 Chevrolet Bel Air w/o Power Disc Brakes (Single Piston Caliper) D52 Disc Disc
1968 Chevrolet Biscayne w/o Power Disc Brakes (Single Piston Caliper) D52 Disc Disc
1968 Chevrolet Caprice w/o Power Disc Brakes (Single Piston Caliper) D52 Disc Disc
1979-1984 Cadillac DeVille Disc Brake Rear D52 D154 Disc Disc Disc Disc
1977-1984 Cadillac DeVille Drum Brake Rear D52 Disc Disc
1978-1984 Cadillac Fleetwood Brougham Brougham D52 Disc Disc
1979-1984 Cadillac Fleetwood Brougham Brougham, Disc Brake Rear D52 D154 Disc Disc Disc Disc
1977-1984 Cadillac Fleetwood Commercial Chassis D52 Disc Disc
1981-1982 Chevrolet K5 Blazer 4 x 2 D52 Disc Disc
1969-1970 Pontiac Bonneville Disc Brake Front D52 Disc Disc
1969-1970 Pontiac Catalina Disc Brake Front D52 Disc Disc
1969-1970 Pontiac Executive Disc Brake Front D52 Disc Disc
1991-1996 Buick Roadmaster All D52 Disc Disc
1990-1996 Cadillac Fleetwood Brougham, RWD, HD, w/o ABS D52 Disc Disc
1987-1988, 1990-1996 Cadillac Fleetwood Brougham, RWD, w/ 12" Rotor D52 Disc Disc
1971-1974, 1987-1991 Chevrolet Blazer 4 x 4 D52 Disc Disc
1991-1992 Chevrolet Caprice All D52 Disc Disc
1978 Buick Park Avenue Park Avenue w/ 12" Rotor, Disc Brake Rear D52 Disc Disc
1977-1978 Buick Riviera Disc Brake Rear D52 Disc Disc
1977-1978 Buick Riviera Drum Brake Rear D52 Disc Disc
1977-1978 Cadillac DeVille Disc Brake Rear D52 Disc Disc
1977-1978 Cadillac Fleetwood Brougham Brougham, Disc Brake Rear D52 Disc Disc
1977 Buick Electra Disc Brake Rear D52 Disc Disc
1977 Buick Electra Drum Brake Rear D52 Disc Disc
1971-1972 GMC C3500 Pickup 4 x 2 D52 Disc Disc
1984-1991 Jeep Grand Wagoneer All D52 Disc Disc
1979 Cadillac Seville All D52 D154 Disc Disc Disc Disc
1969 Pontiac Beaumont Disc Brake Spindle D52 Disc Disc
1971-1976 Buick Electra All Sedan & Wagon D52 Disc Disc
1971-1976 Buick Estate Wagon All Sedan & Wagon D52 Disc Disc
1971-1976 Buick LeSabre All Sedan & Wagon D52 Disc Disc
1973-1977 Buick Regal Disc Brake Spindle D52 Disc Disc
1971-1976 Buick Riviera All D52 Disc Disc
1973-1974 Chevrolet Blazer 4 x 2, OE Disc Brake Spindle D52 Disc Disc
1971-1974 Chevrolet C10 Pickup Disc Brake Spindle (OE) D52 Disc Disc
1968 Chevrolet Impala w/o Power Disc Brakes (Single Piston Caliper) D52 Disc Disc
1977 GMC K15 Suburban 4 x 4 D52 Disc
1975-1978 GMC K15 4 x 4 D52 Disc Disc
1973-1975 Pontiac Grand Am Disc Brake Spindle D52 Disc Disc
1969-1970 Pontiac Tempest Disc Brake Spindle D52 Disc Disc
1980-1986 Pontiac Parisienne With OE 11" Rotor Spindles D52 Disc Disc
1975-1976, 1978 GMC K15 Suburban 4 x 4 D52 Disc Disc
1987-1988 Pontiac Bonneville SW Only D52 Disc Disc
1987 Chevrolet R10 Pickup 4 x 2 w/ 1.00" Wide Front Rotor D52 Disc Disc
1987 Chevrolet R10 Pickup 4 x 2 w/ 1.25 Wide Front Rotor D52 Disc Disc
1987 Chevrolet R10 Suburban 4 x 2 w/ 1.25 Wide Front Rotor D52 Disc Disc
1971-1972 GMC P15 Series 4 x 2 w/ OE Disc Brake Spindle D52 Disc Disc
1971-1972 GMC Sprint Disc Brake Spindle D52 Disc Disc
1977-1978 Cadillac Seville All D52 Disc Disc
1987 GMC R1500 Pickup 4 x 2 w/ 1.00" Wide Front Rotor D52 Disc Disc
1987 GMC R1500 Pickup 4 x 2 w/ 1.25 Wide Front Rotor D52 Disc Disc
1987 GMC R1500 Suburban 4 x 2 w/ 1.00" Wide Front Rotor D52 Disc Disc
1987 GMC R1500 Suburban 4 x 2 w/ 1.25 Wide Front Rotor D52 Disc Disc
1987 GMC R2500 Pickup 4 x 2 w/ 11" Rear Drum Brakes D52 Disc Disc
1987 GMC R2500 Suburban 4 x 2 w/ 11" Rear Drum Brakes D52 Disc Disc
1987 GMC V1500 Pickup 4 x 4 D52 Disc Disc
1987 GMC V2500 Pickup 4 x 4 w/ 11" Rear Drum Brakes D52 Disc Disc
1987 GMC V2500 Suburban 4 x 4 w/ 11" Rear Drum Brakes D52 Disc Disc
1973-1974 Chevrolet G10 Van All D52 Disc Disc
1973-1974 Chevrolet G20 Van All D52 Disc Disc
1971-1974 Chevrolet G30 Van All D52 Disc Disc
1971-1974 Chevrolet K10 Pickup 4 x 4 D52 Disc Disc
1971-1973 Buick Centurion All Sedan & Wagon D52 Disc Disc
1989-1991 Chevrolet R1500 Suburban 4 x 2 D52 Disc Disc
1970-1972 Buick GS Base Base D52 Disc Disc
1970-1972 Buick GS 455 Base Base D52 Disc Disc
1971-1972 Chevrolet Biscayne Sedan & Wagon D52 Disc Disc
1971-1972 Chevrolet Blazer 4 x 2 w/ OE Disc Brake Spindle D52 Disc Disc
1971-1972 Chevrolet Brookwood All D52 Disc Disc
1987 Chevrolet R10 Suburban 4 x 2 w/ 1.00" Wide Front Rotor D52 Disc Disc
1987 Chevrolet R20 Pickup 4 x 2 w/ 11" Rear Drum Brakes D52 Disc Disc
1987 Chevrolet R20 Suburban 4 x 2 w/ 11" Rear Drum Brakes D52 Disc Disc
1987 Chevrolet V10 Pickup 4 x 4 D52 Disc Disc
1987 Chevrolet V20 Pickup 4 x 4 w/ 11" Rear Drum Brakes D52 Disc Disc
1987 Chevrolet V20 Suburban 4 x 4 w/ 11" Rear Drum Brakes D52 Disc Disc
1976 Cadillac Seville Disc Brake Spindle D52 Disc Disc
1977 Oldsmobile Delta 88 w/ 12" Rotor D52 Disc Disc
1970 Buick Electra Disc Brake Spindle D52 Disc Disc
1970 Buick LeSabre Disc Brake Spindle D52 Disc Disc
1970 Buick Riviera Disc Brake Spindle D52 Disc Disc
1970 Buick Wildcat Disc Brake Spindle D52 Disc Disc
1971-1972 Chevrolet C30 Pickup 4 x 2 D52 Disc Disc
1995 Chevrolet G20 Base Base D52 Disc Disc
1975-1986 Chevrolet K10 4 x 4 D52 Disc Disc
