Wilwood BP-45 Brake Pad Set for NDL and Radial-Mount Dynapro, .60-Inch

Wilwood Engineering was founded by Bill Wood in 1977 in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street and specialized applications. BP-45 brake pads in the .60-inch Narrow Dynalite/Dynapro Radial configuration supply four replacement pads. Each component must be chosen for its role within the complete braking system.

Technical Details

• Manufacturer part number: 150-45-7816K

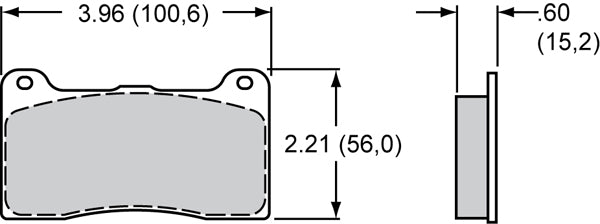

• Pad/shoe profile: 7816
• Compound: BP-45
• Catalog pad area: 6.36 square inches
• Supplied condition: Not pre-bedded; follow the instructions for the selected compound and brake system.
• Package quantity: 4 individual pads
• Catalog thickness: .60 inch
• Catalog pad volume: 3 cubic inches
• Listed Wilwood calipers: Narrow Dynalite; Narrow Dynalite Radial Mount; Cast Narrow Dynalite; Dynapro 4 Piston Radial Mount-Dust Seal; Dynapro 4 Piston Radial Mount; Dynapro-ST 4 Piston Radial Mount; Forged Narrow Dynalite; Narrow Dynapro Lug Mount

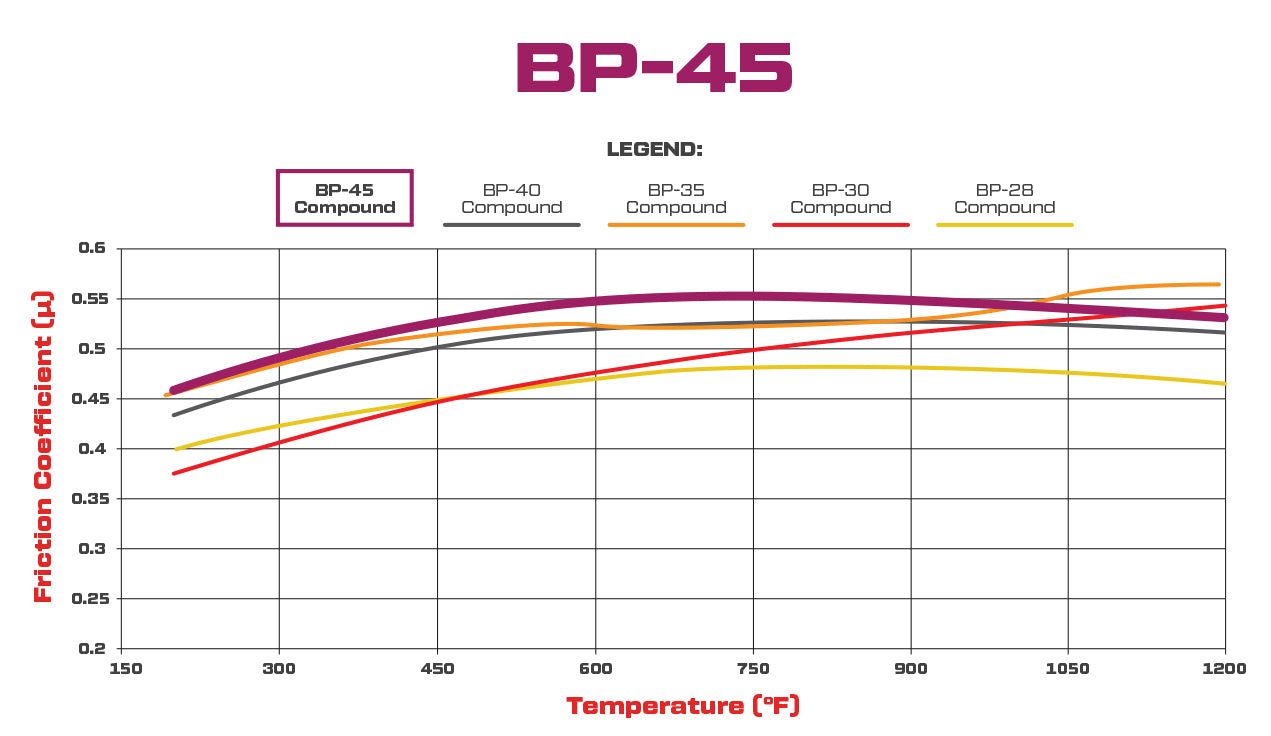

BP-45 combines high friction with useful cold response and a smooth increase in friction as rotor temperature rises. Wilwood lists it for racing applications with iron or steel rotors. Choose it around the car’s braking load and balance; a matching production-car pad shape does not make this a general street replacement.

Fitment & Compatibility

The 0.60-inch version is listed for narrow Dynalite and the specified radial-mount or narrow-lug Dynapro calipers. Compare caliper generation, retention and rotor width with the installed assembly.

Manufacturer Reference

Wilwood pad dimensions, compound and caliper information

For help matching the installed brake hardware, contact PMB Performance. Our team has more than 20 years of parts and fitment experience.
